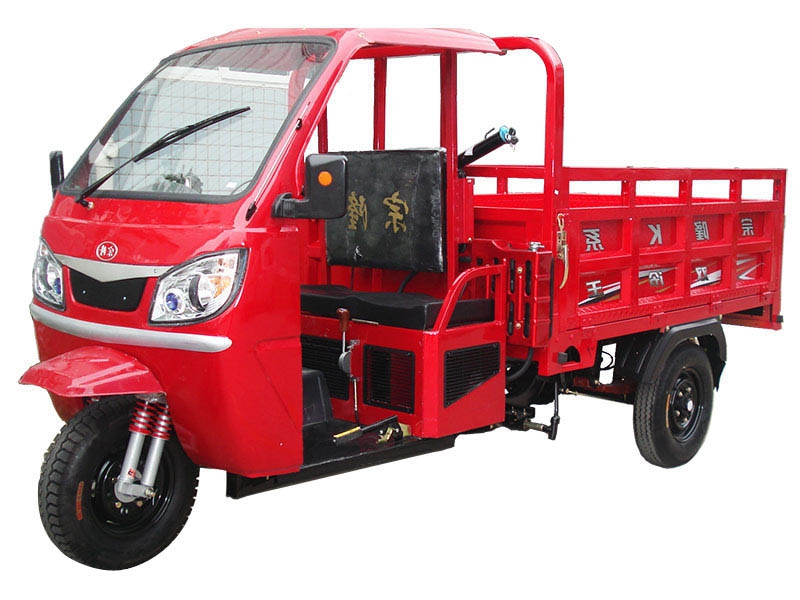

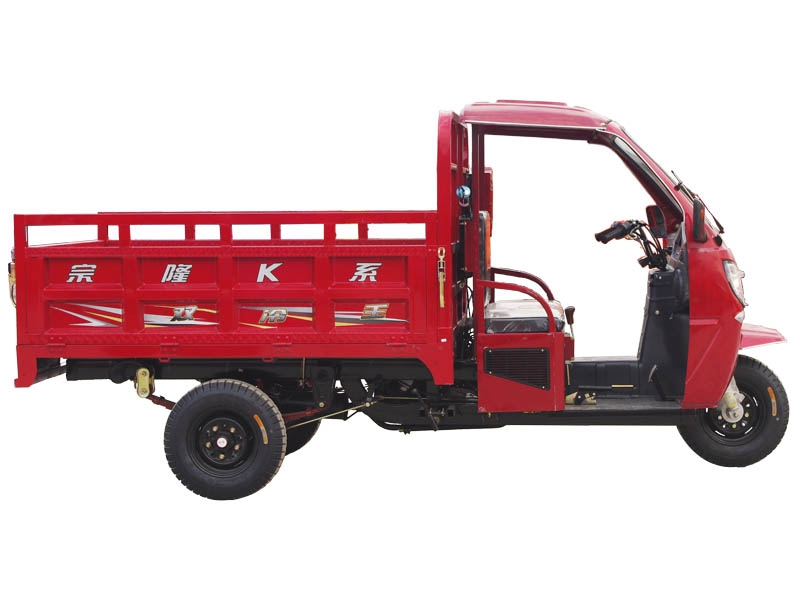

ZONLON Cargo Tricycle ZL200ZH-LGo ZONLON Cargo Tricycle ZL200ZH-LGo

ZONLON Cargo Tricycle ZL200ZH-LGo

  • Place of Origin:Chongqing,China
  • Brand:ZONLON or OEM
  • Model No.:ZL200ZH-LGo
  • Color:red,orange,blue,yellow,white,etc
  • Size:3610×1350×1820mm

ZL200ZH-LGo 200c Water-Cooled Pick-Up Van Three Wheelers

Engine
Engine typeSingle cylinder, water cooling, 4-stroke
Displacement197ml
Compression ratio10.2:1
Max power output10.3 / 7500 kw/r/min
Max torque14.2 / 6000 N·m/r/ min
ClutchWet multi-plate, Pressure splash
Transmission & Reverse5 forward gears + 1 reverse
Steering mechanismSteering handle bar
ChassisFR 40×100, RR 50×100 rectangular steel tube
Front suspensionType 800 W270 solo front shock absorber
Rear suspension7 pcs Pickup leaf spring, Chan'an rear axle
Braking systemFR 130, RR 220, mechanical braking
Wheel tireFR / RR 4.50-12
Battery12V / 28Ah
Starting methodElectrical / Kick starter
Fuel tankGasoline, 15 L
Fuel consumption≤354
Ground clearance160mm
Max speed60km/h
Overall dimension
Wheel base2520mm
Dimension3610×1350×1820mm
Cargo box size1800×1350mm
Vehicle weightKerb 520 kgs, Pay load 350 kgs
Container load12 sets in CKD / 20GP;  26 sets inCKD / 40HQ
Optioal parts1. Cargo box size and type optional on request
2. Hydraulic braking  system
3. Dumper system
