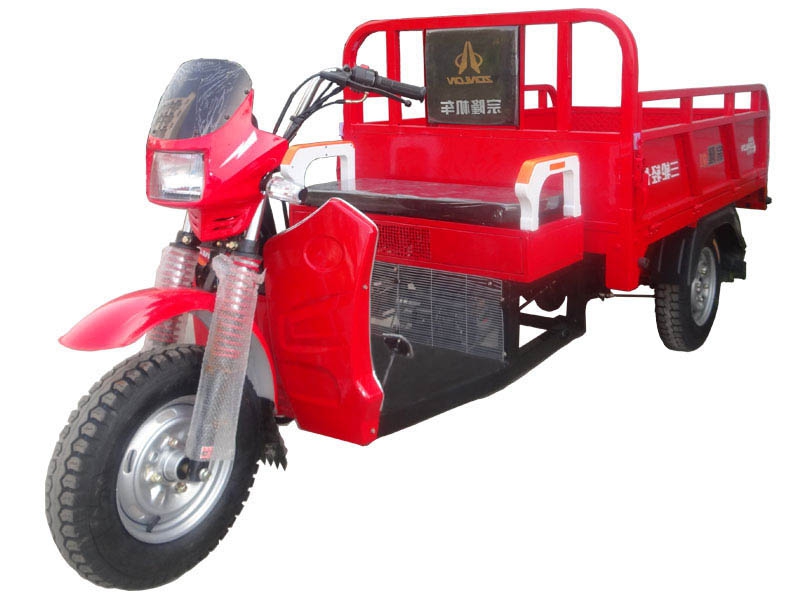

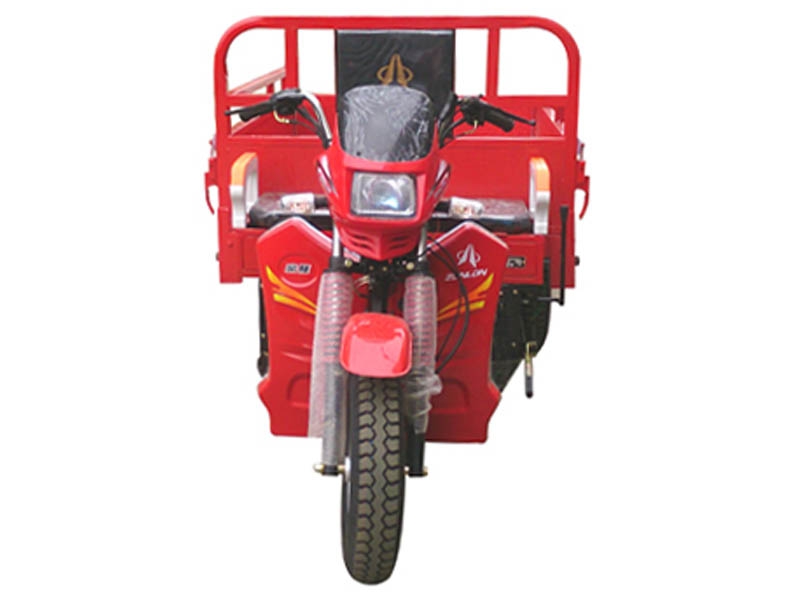

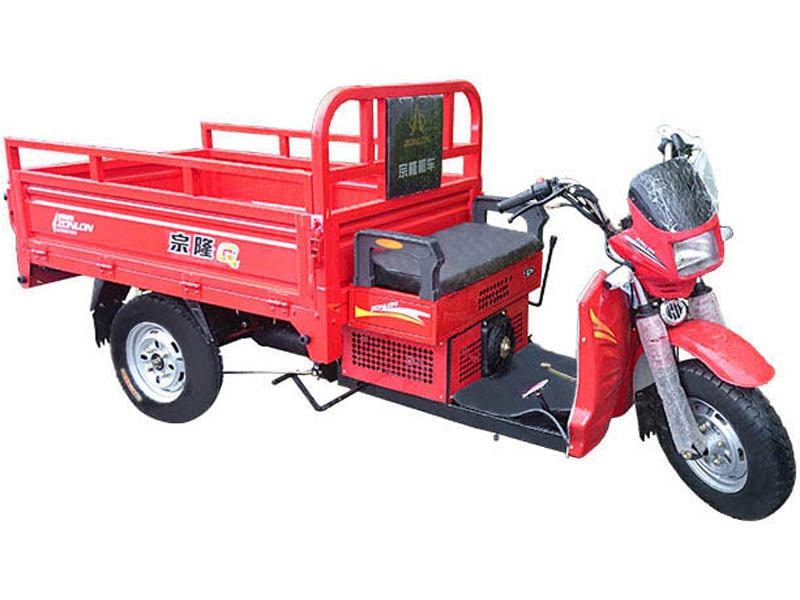

ZONLON Cargo Tricycle ZL150ZH-S1

  • Place of Origin:Chongqing,China
  • Brand:ZONLON or OEM
  • Model No.:ZL150ZH-S1
  • Color:red,orange,blue,yellow,white,etc
  • Size:3280×1300×1380mm

ZL150ZH-S1 150cc Air-Cooled Cargo Trike

Engine
Engine typeSingle cylinder, air cooling, 4-stroke
Displacement149ml
Compression ratio9.1:1
Max power output8.5 / 8000 kw/r/min
Max torque10 / 7500 N·m/r/ min
ClutchWet multi-plate, Pressure splash
Transmission & Reverse5 forward gears + 1 reverse
Steering mechanismSteering handle bar
ChassisFR / RR 40×60 rectangular steel tube
Front suspensionElevated shock absorber
Rear suspensionL760 integrated 5 pcs leaf spring, Generation 2 light rear axle with booster
Braking systemFR 130, RR drum 180,  mechanical braking
Wheel tireFR / RR 4.50-12
Battery12V / 9Ah
Starting methodElectrical / Kick starter
Fuel tankGasoline, 7.5L
Fuel consumption≤354
Ground clearance160mm
Max speed55km/h
Overall dimension
Wheel base2180mm
Dimension3280×1300×1380mm
Cargo box size1800×1200mm
Vehicle weightKerb 360 kgs, Pay load 300 kgs
Container load20 sets in CKD / 20GP;  45 sets in CKD 40HQ
Optioal partsSemi-Cabin
