ZONLON Cargo Tricycle ZL200ZH-LF2 ZONLON Cargo Tricycle ZL200ZH-LF2

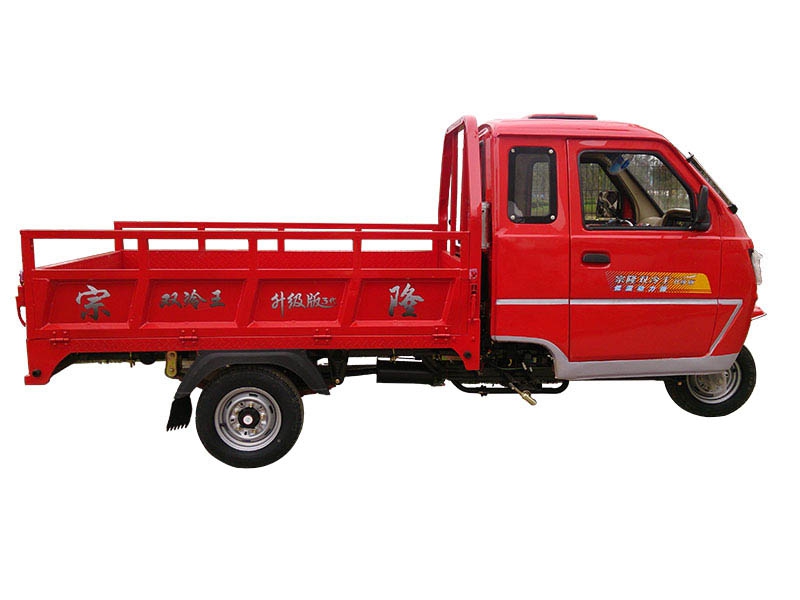

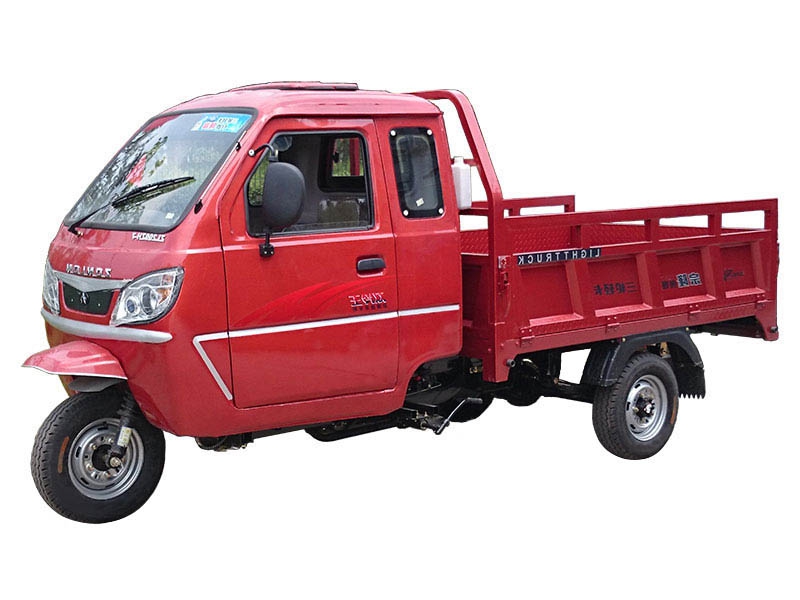

ZONLON Cargo Tricycle ZL200ZH-LF2

  • Place of Origin:Chongqing,China
  • Brand:ZONLON or OEM
  • Model No.:ZL200ZH-LF2
  • Color:red,orange,blue,yellow,white,etc
  • Size:3600×1300×1850mm

ZL200ZH-LF2 200cc Water-Cooled Pickup Van Motorcycle

Engine
Engine typeSingle cylinder, water cooling, 4-stroke
Displacement197ml
Compression ratio10.2:1
Max power output10.3 / 7500 kw/r/min
Max torque14.2 / 6000 N·m/r/ min
ClutchWet multi-plate, Pressure splash
Transmission & Reverse5 forward gears plus 1 reverse
Steering mechanismSteering handle bar
ChassisFR 40×100, RR 50×100 rectangular steel tube
Front suspensionType 800 W270 solo front shock absorber with interchangeable wheel
Rear suspensionGreased outer mounting 4+3 conbined leaf spring, Chan'an rear axle
Braking systemFR 130, RR 220, mechanical braking
Wheel tireFR / RR 4.50-12
Battery12V / 28Ah
Starting methodElectric / Kick starter
Fuel tankGasoline, 15L
Fuel consumption<=354
Ground clearance160mm
Max speed60km/h
Overall dimension
Wheel base2410mm
Dimension3600×1300×1850mm
Cargo box size1800×1300mm
Vehicle weightKerb weight 580 kgs, Pay load 350 kgs
Container load4 sets in CKD / 20GP ;  8 sets in CKD / 40HQ
Optioal parts1. Cargo box size and type optional on request
2. Hydraulic braking  system
3. Dumper system
