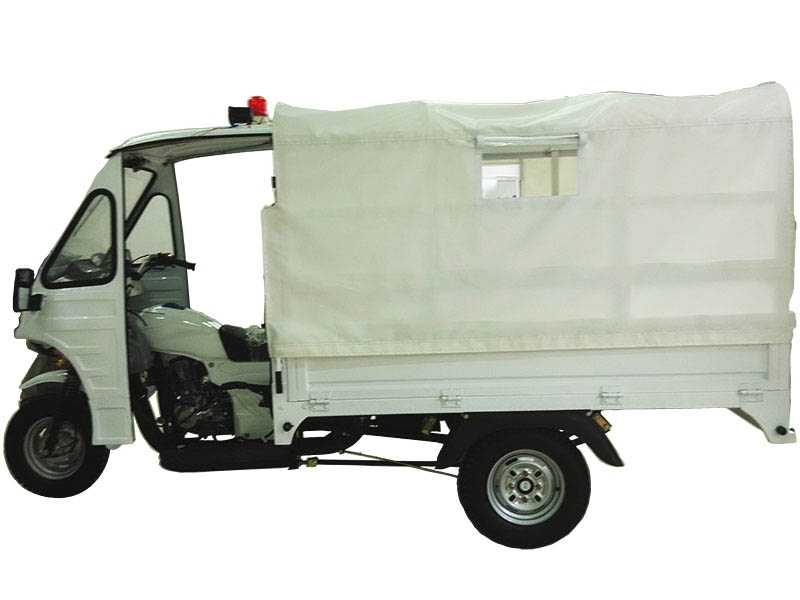

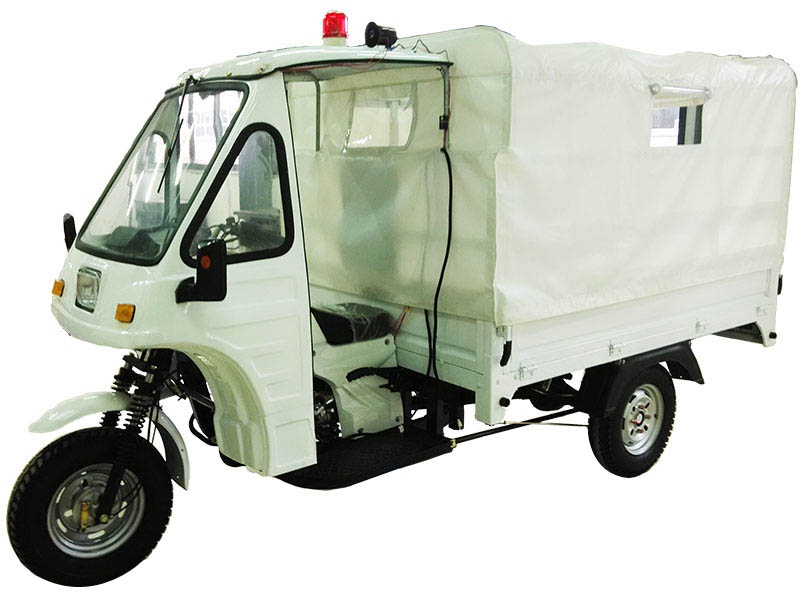

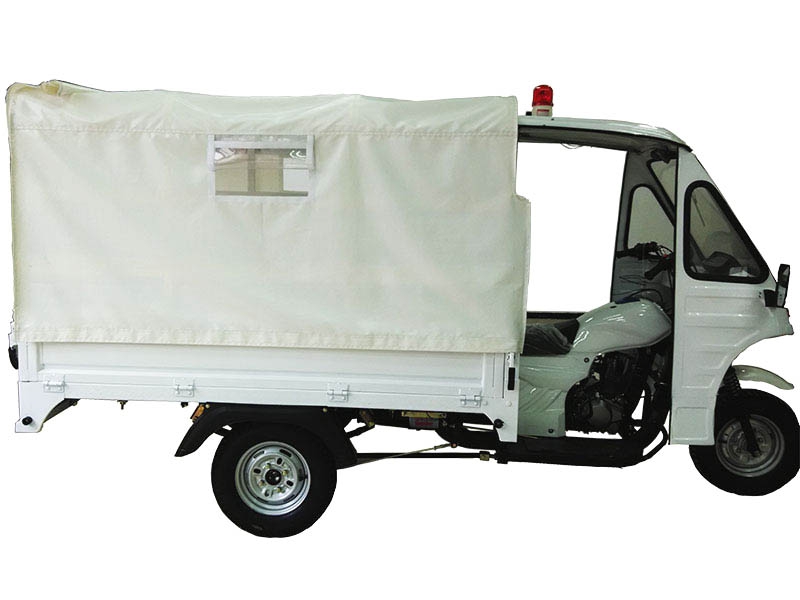

ZONLON Ambulance Tricycle ZL150ZK-CA

ZL150ZK-CA 150cc Air-Cooled Canvas Ambulance Emergency Tricycle

Engine
Engine Type	Single cylinder, air cooling, 4-stroke
Displacement	149ml
Compression ratio	9.1:1
Max power output	8.5 / 8000 kw/r/min
Max torque	10 / 7500 N·m/r/ min
Clutch	Wet, multi-plate, Pressure splash
Transmission & Reverse	5 forward gears + 1 reverse
Steering mechanism	Steering handle bar
Chassis	FR / RR 40×80 rectangular steel tube
Front suspension	Solo stem front shock absorber for Q1
Rear suspension	Integrated 7 pcs leaf spring, 4 bolts rear axle with booster and damper
Braking system	FR 130, RR 180, mechanical braking
Wheel tire	FR / RR 4.50-12
Battery	12V / 9Ah
Starting method	Electric / kick starter
Fuel tank	Gasoline, 12L
Fuel consumption	≤354
Ground clearance	160mm
Max speed	55km/h
Overall dimension
Wheel base	2300mm
Dimension	3590×1400×1990mm
Passenger cabin	2100×1400x1260mm
Seats capacity	1 patient + 2~3 doctors & nurses
Vehicle weight	Kerb 410 kgs, Pay load 300 kgs
Container load	15 sets in CKD / 20GP; 32 sets in CKD /40HQ
