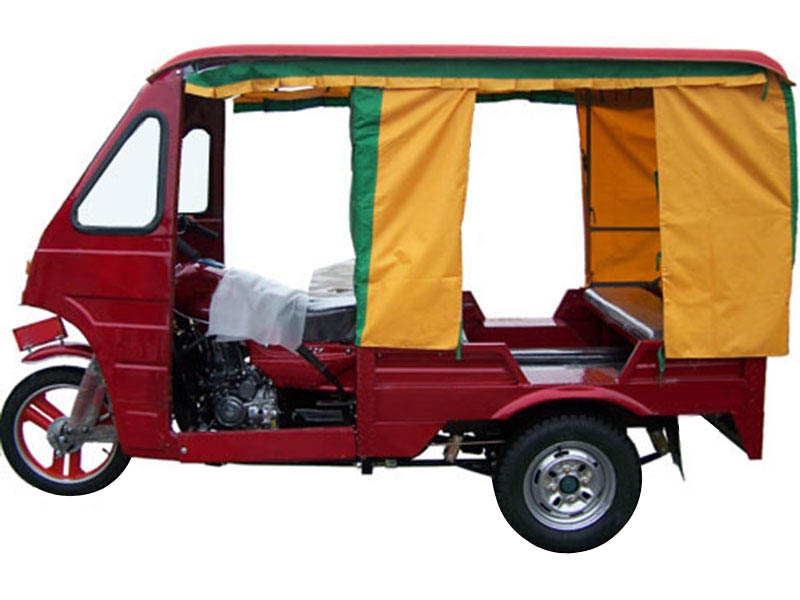

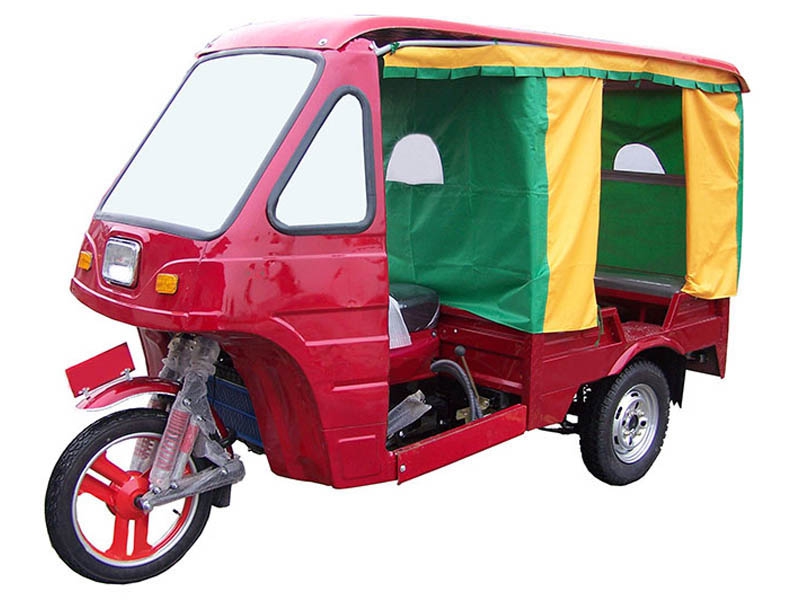

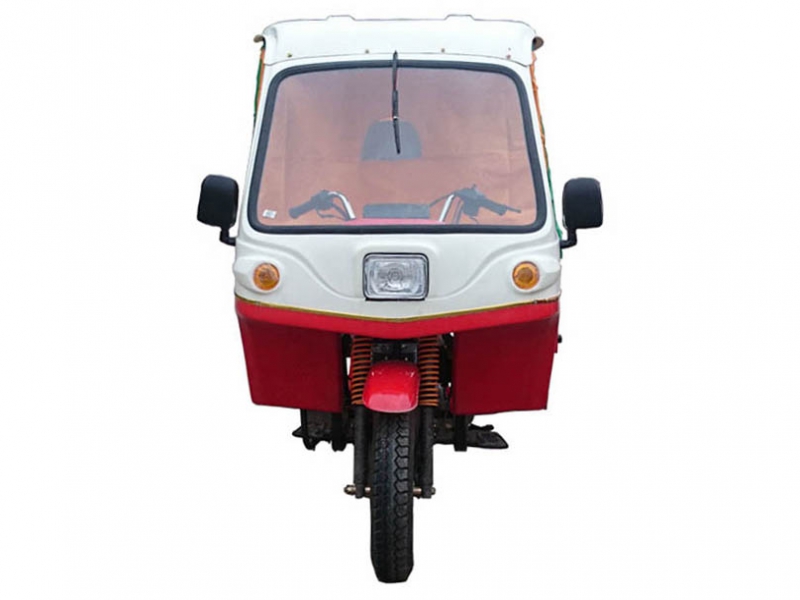

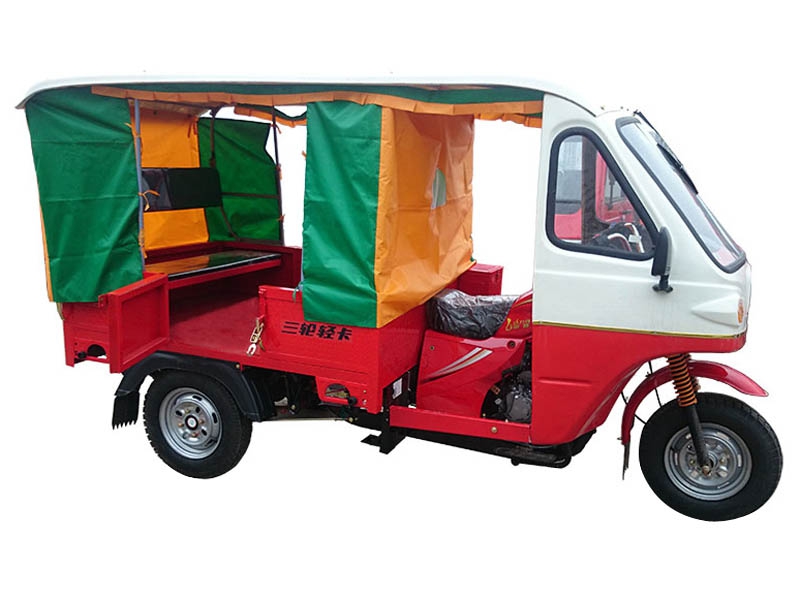

ZONLON Passenger Tricycle ZL150ZK-4S

ZL150ZK-4S 150cc Air-Cooled Passenger Tricycle 4 Seaters

Engine
Engine Type	Single cylinder, air cooling, 4-stroke
Displacement	149ml
Compression ratio	9.1:1
Max power output	8.5 / 8000 kw/r/min
Max torque	10 / 7500 N·m/r/ min
Clutch	Wet, multi-plate, Pressure splash
Transmission & Reverse	5 forward gears + 1 reverse
Steering mechanism	Steering handle bar
Chassis	40×60 rectangular tube
Front suspension	Elevated shock absorber
Rear suspension	Combined 3+2 leaf spring, light Chan'an rear axle
Braking system	FR 130, RR 180, mechanical braking
Wheel tyre	FR / RR 4.50-12
Battery	12V / 9Ah
Starting method	Electric / kick starter
Fuel tank capacity	Gasoline, 12L
Fuel consumption	≤354
Ground clearance	160mm
Max speed	55km/h
Vehicle dimension
Wheel base	2150mm
Dimension	3180×1250×1780mm
Seats capacity	4 Passengers
Vehicle weight	Kerb 420 kgs, Pay load 350 kgs
Container load	15 sets in CKD / 20GP; 32 sets in CKD / 40HQ
