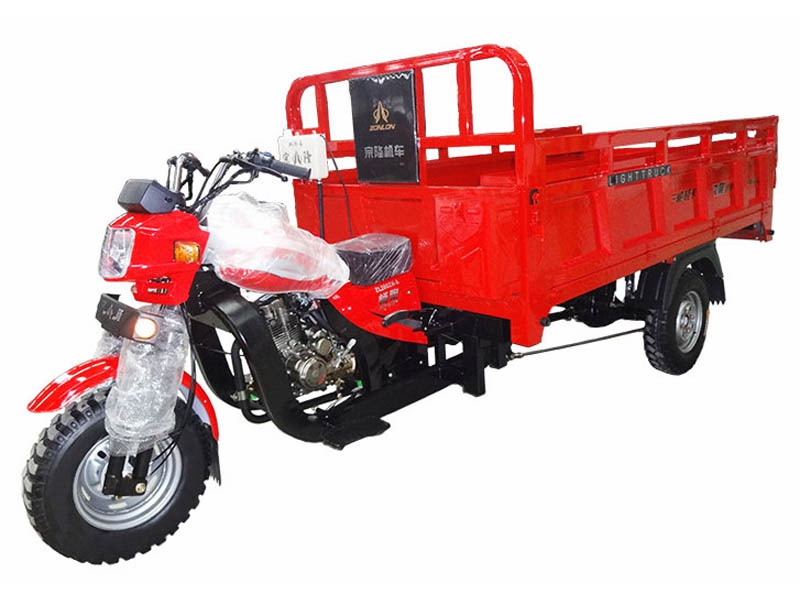

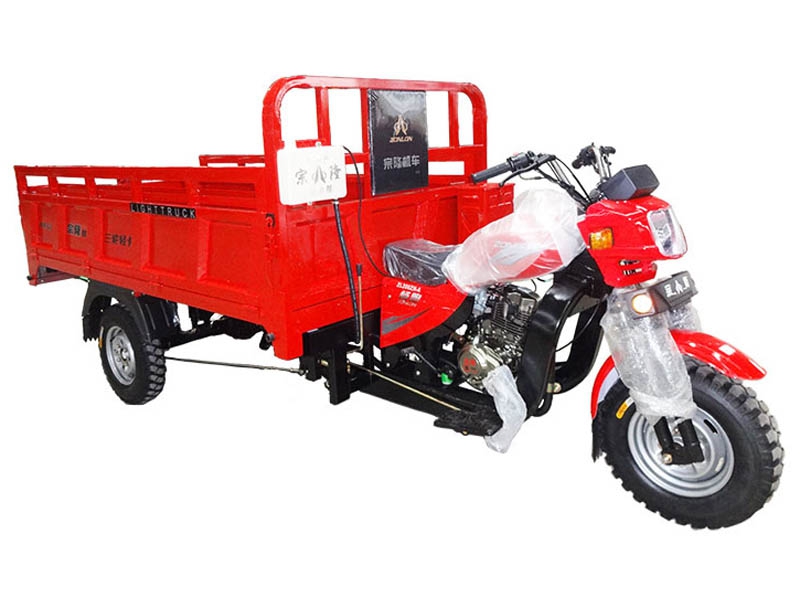

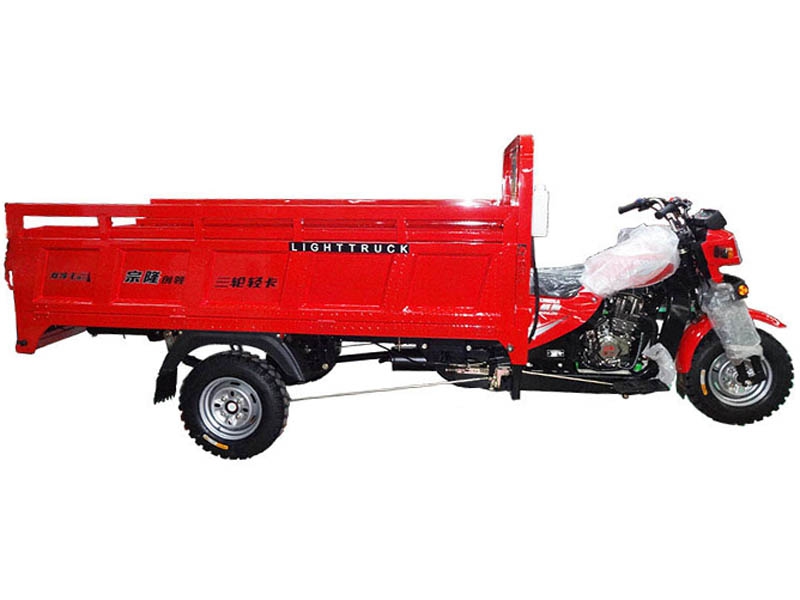

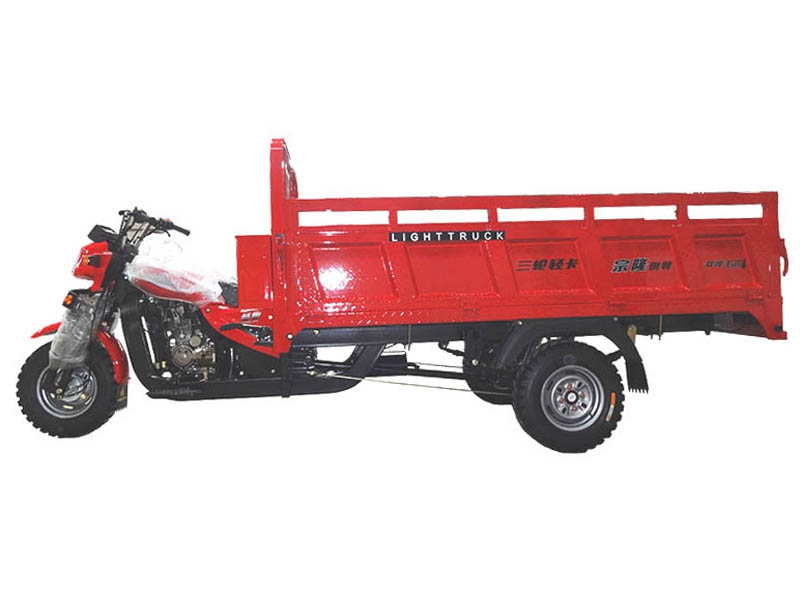

ZONLON Cargo Tricycle ZL200ZH-5

ZL200ZH-5 200cc Water-Cooled Load Truck Three Wheels

Engine
Engine type	Single cylinder, water cooling, 4-stroke
Displacement	193ml
Compression ratio	9.0:1
Max power output	10.2 / 8000 kw/r/min
Max torque	14.5 / 6000 N·m/r/min
Clutch	Wet multi-plate, Pressure splash
Transmission & Reverse	5 forward gears + 1 reverse
Steering mechanism	Steering handle bar
Chassis	FR / RR 50×100 rectangular steel tube
Front suspension	Type 800 W270 solo front shock absorber with interchangeable wheel
Rear suspension	Greased outer mounting 5+4 conbined leaf spring, Semi-float Chan'an rear axle
Braking system	FR 130, RR 220, mechanical braking
Wheel tire	FR / RR 4.50-12
Battery	12V / 28Ah
Starting method	Electric / Kick starter
Fuel tank	Gasoline, 12L
Fuel consumption	≤354
Ground clearance	160mm
Max speed	60km/h
Overall dimension
Wheel base	2200mm
Dimension	3400×1250×1550mm
Cargo box size	1800×1250mm
Vehicle weight	Kerb 420 kgs, Pay load 350 kgs
Container load	20 sets in CKD / 20GP; 45 sets inCKD / 40HQ
Optioal parts	1. Semi-Cabin 2. Cargo box size and type optional on request 3. Hydraulic braking system 4. Dumper system
