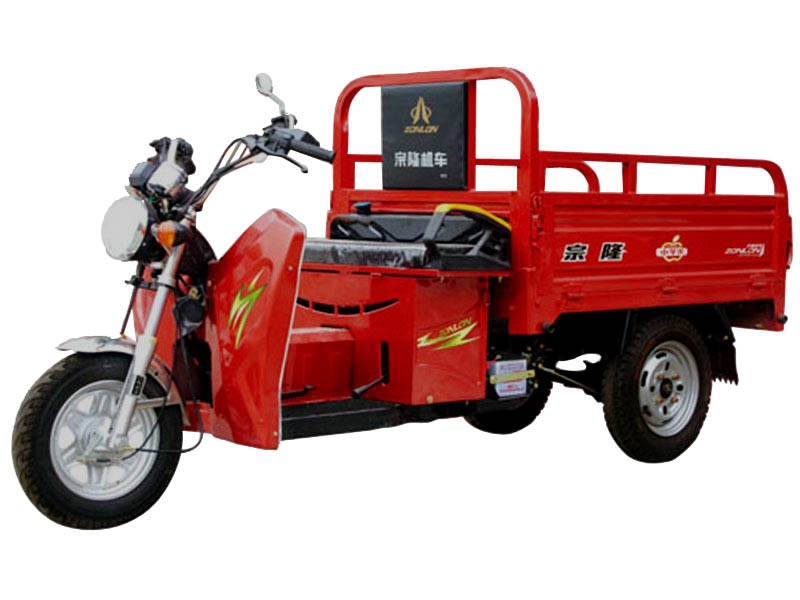

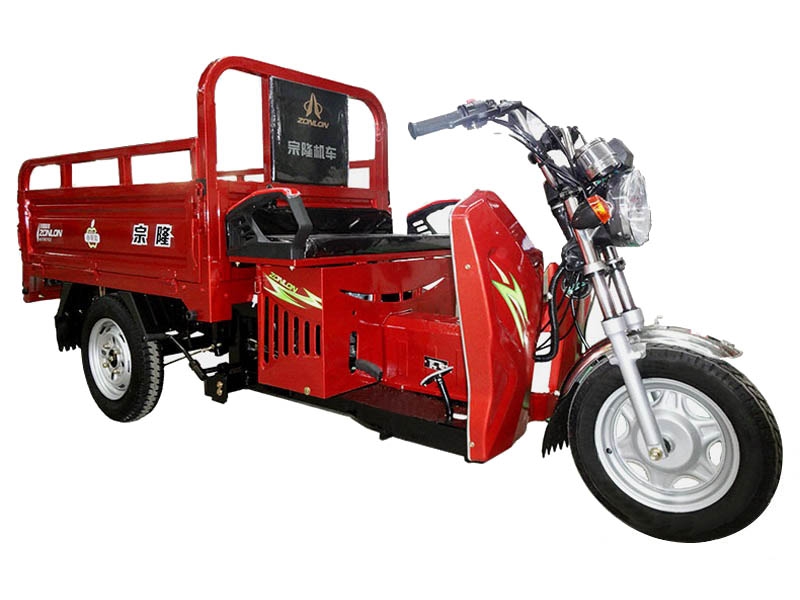

ZONLON Cargo Tricycle ZL130ZH ZONLON Cargo Tricycle ZL130ZH

ZONLON Cargo Tricycle ZL130ZH

  • Place of Origin:Chongqing,China
  • Brand:ZONLON or OEM
  • Model No.:ZL130ZH
  • Color:red,orange,blue,yellow,white,etc
  • Size:2900×900×1330mm

ZL130ZH 130cc Air-Cooled Light Load Tricycle


Engine
Engine typeSingle cylinder, air cooling, 4-stroke
Displacement122.8ml
Compression ratio9.5:1
Max power output6.1 / 7500 kw/r/min
Max torque9.0 / 5500 N·m/r/ min
ClutchWet multi-plate,  pressure splash
Transmission & Reverse4 forward gears cycling + 1 reverse
Stgering mechanismSteering handle bar
Chassis40×60 retangular steel tube
Front suspension130 hydraulic shock absorber
Rear suspensionIntegrated 6 pcs leaf spring, taper differential box rear axle
Braking systemFR 130 / RR 160, mechanical braking
Wheel tireFR 3.75-12, RR 4.00-12
Battery12V / 9Ah
Starting methodElectric / Kick starter
Fuel tankGasoline, 7L
Fuel consumption≤288
Ground clearance160mm
Max speed50km/h
Overall dimension
Wheel base1950mm
Dimension2900×900×1330mm
Cargo box size1400×900mm
Vehicle weightKerb 260 kgs, Pay load 260 kgs
Container load25 sets in CKD / 20GP;  49 sets in CKD / 40HQ



Catalouge download: ZONLON-Motor-Tricycle-ZL130ZH
