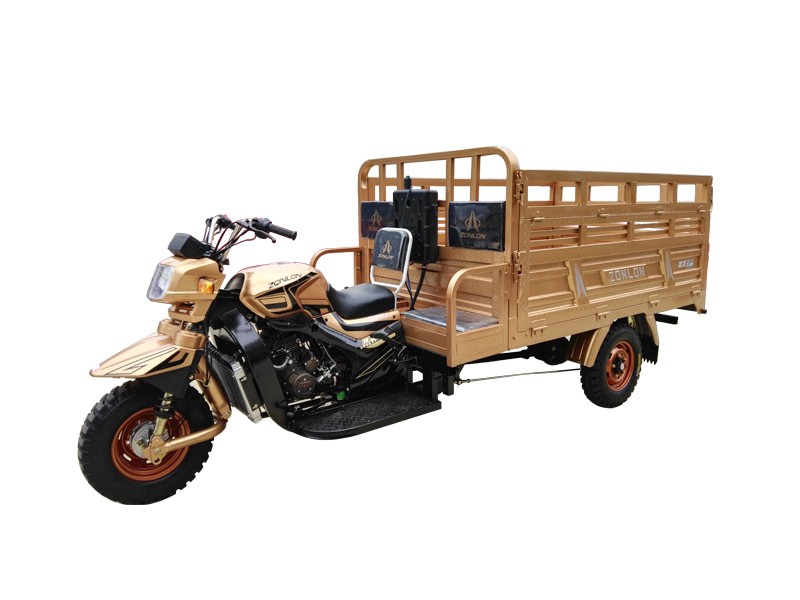

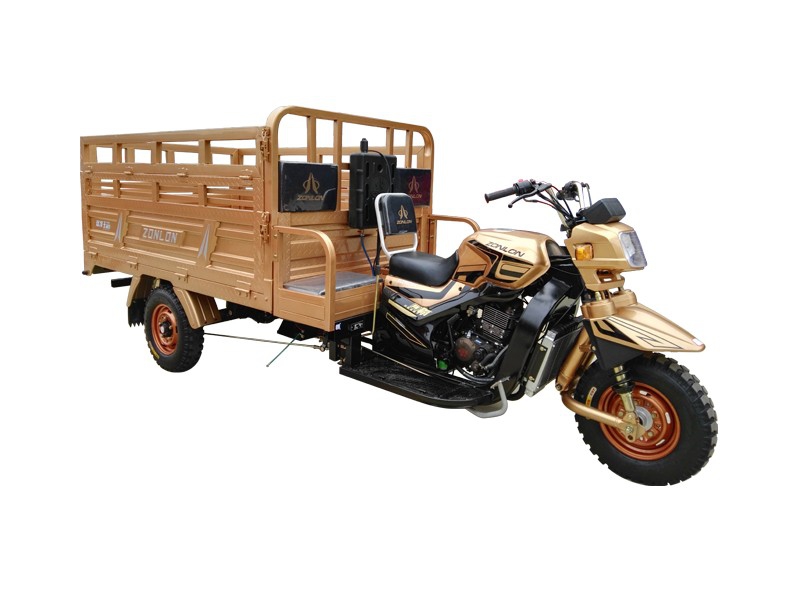

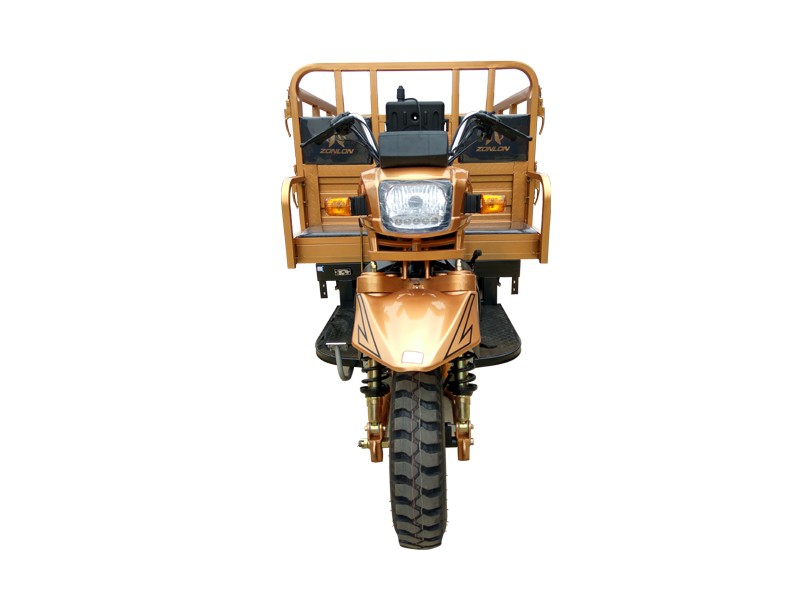

ZONLON Cargo Tricycle ZL200ZH-LB ZONLON Cargo Tricycle ZL200ZH-LB ZONLON Cargo Tricycle ZL200ZH-LB

ZONLON Cargo Tricycle ZL200ZH-LB

  • Place of Origin:Chongqing,China
  • Brand:ZONLON or OEM
  • Model No.:ZL200ZH-LB
  • Color:red,orange,blue,yellow,white,etc
  • Size:3400×1350×1550mm

ZL200ZH-LB 200cc Water-Cooled Cargo Truck Motor Tricycle

Engine
Engine typeSingle cylinder, water cooling, 4-stroke
Displacement197ml
Compression ratio10.2:1
Max power output10.3 / 7500 kw/r/min
Max torque14.2 / 6000 N·m/r/ min
ClutchWet multi-plate, Pressure splash
Transmission & Reverse5 forward gears + 1 reverse
Steering mechanismSteering handle bar
ChassisFR / RR 50×100 rectangular steel tube
Front suspensionZONLON off-road shock absorber
Rear suspension7 pcs Pickup leaf spring, Ribbed JLW semi-float rear axle with booster
Braking systemFR 130, RR 220, mechanical braking
Wheel tireFR / RR 4.50-12
Battery12V / 28Ah
Starting methodElectric / Kick starter
Fuel tankGasoline, 12L
Fuel consumption≤354
Ground clearance160mm
Max speed60km/h
Overall dimension
Wheel base2200mm
Dimension3400×1350×1550mm
Cargo box size1800×1350mm
Vehicle weightKerb  450 kgs, Pay load 350 kgs
Container load24 sets in CKD / 20GP;  52 sets in CKD / 40HQ
Optioal parts1. Semi-Cabin
2. Cargo box size and type optional on request
3. Hydraulic braking  system
4. Dumper system



Catalogue download: ZONLON-Motor-Tricycle-ZL200ZH-5N
