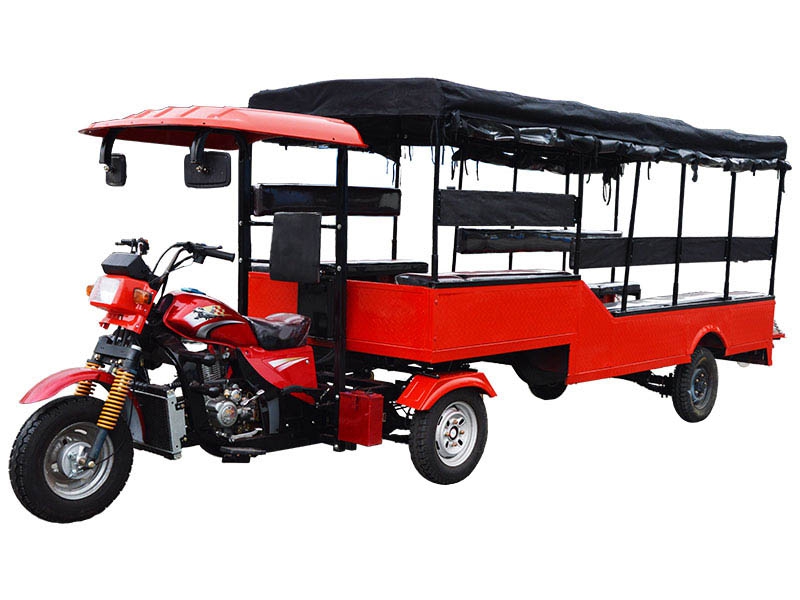

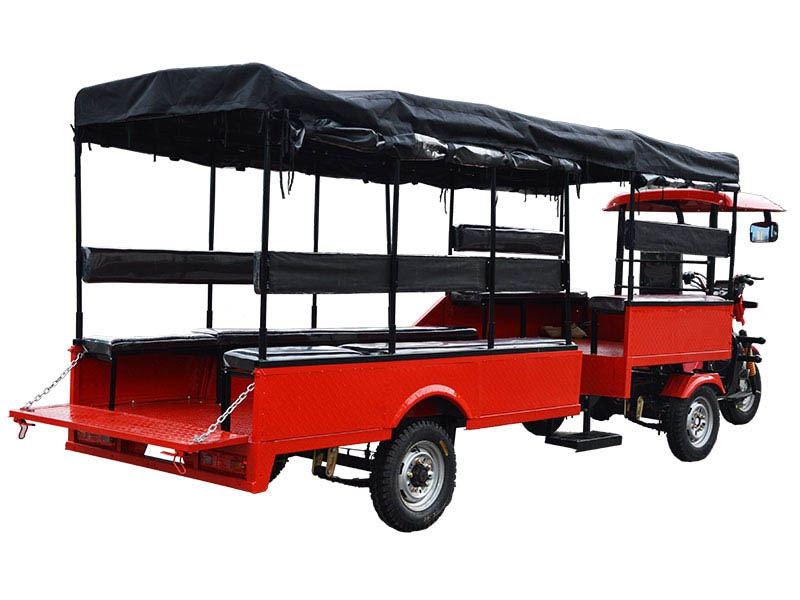

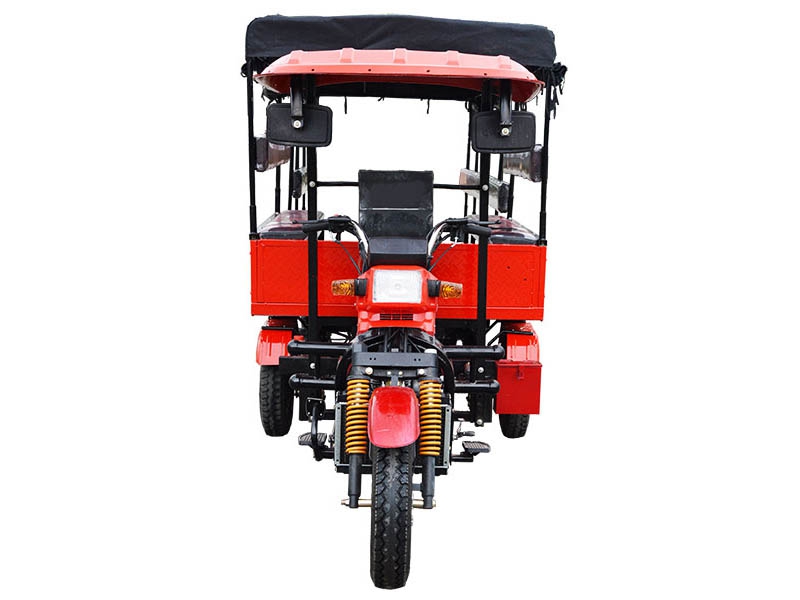

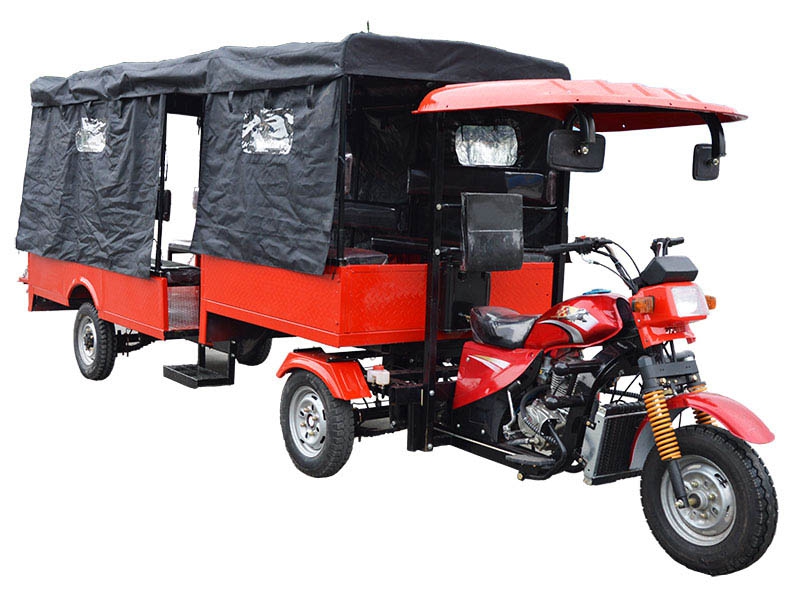

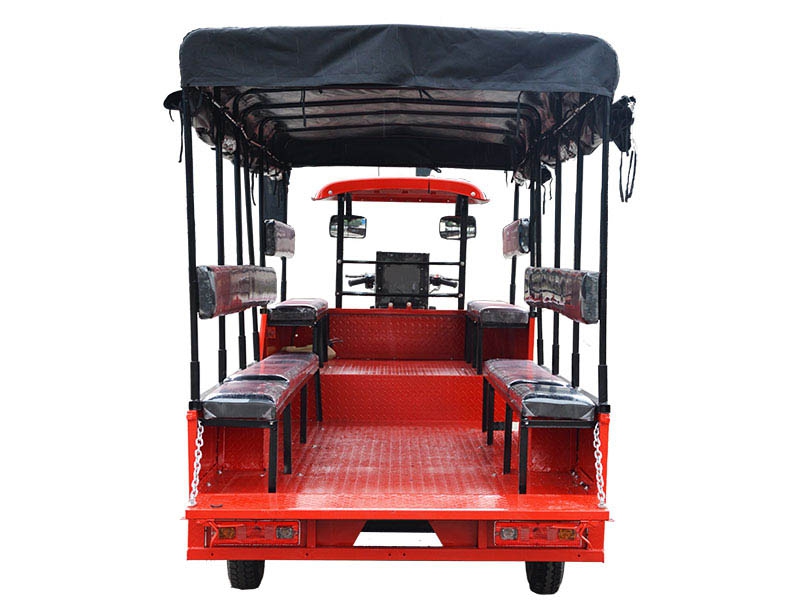

ZONLON Special Vehicle ZL200ZK-LIMO

ZL200ZK-LIMO 200cc Water-Cooled Auto Ricshaw Motor Bus 18~20 Seaters

Engine
Engine Type	Single cylinder, water cooling, 4-stroke
Displacement	197ml
Compression ratio	10.5:1
Max power output	10.3 / 7500 kw/r/min
Max torque	14.2 / 6000 N·m/r/ min
Clutch	Wet, multi-plate, Pressure splash
Transmission & Reverse	5 forward gears + 1 reverse
Steering mechanism	Steering handle bar
Chassis	FR / RR 50×100 Rectangular steel tube
Front suspension	Type 800 W270 solo front shock absorber with interchangeable wheel
Rear suspension	Integrated outer mounting 7pcs leaf spring, Chan'an rear axle
Braking system	FR 130, RR 180, FR Mechanical / RR Hydraulic braking
Wheel tyre	FR / RR 4.50-12
Ground clearance	160 mm
Battery	12V / 9Ah
Starting method	Electric / Kick starter
Fuel tank capacity	Gasoline, 12L
Fuel consumption	≤354
Max speed	55km/h
Vehicle dimension
Wheel base	FR 1740mm / RR 2730mm
Dimension	5830×1400×2030mm
Seats capacity	18~20 Passengers
Vehicle weight	Kerb 550 kgs, Pay load 580 kgs
Container load	12 sets in CKD / 20GP; 25 sets in CKD / 40HQ
