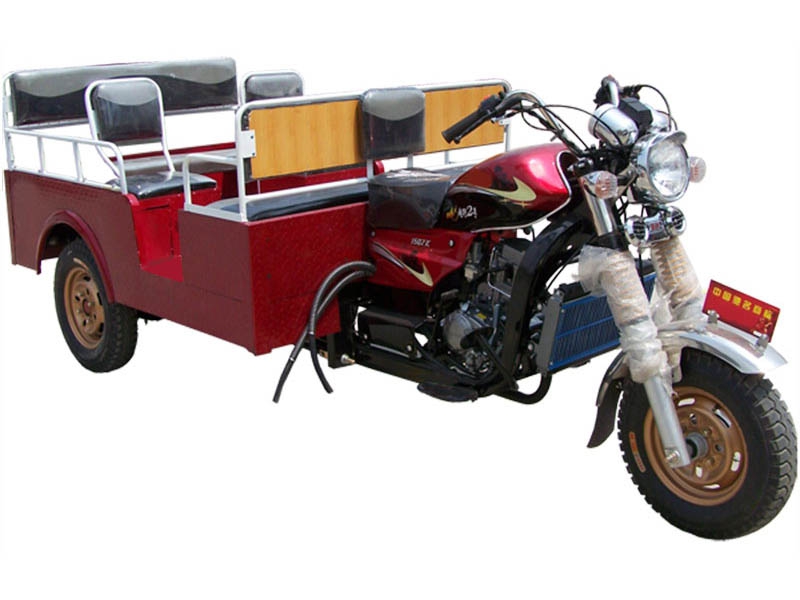

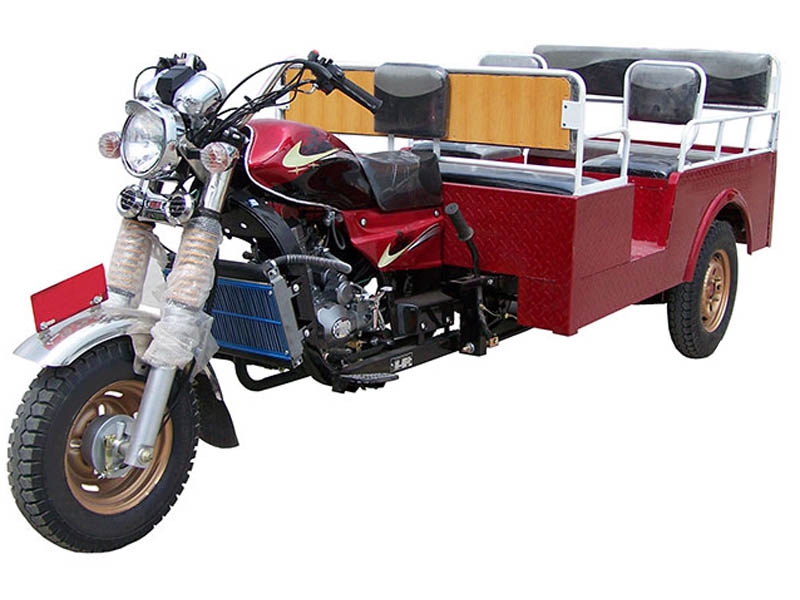

ZONLON Passenger Tricycle ZL200ZK-7S

ZL200ZK-7S 200cc Water-Cooled Passenger Motorcycle 7 Seaters

Engine
Engine Type	Single cylinder, water cooling, 4-stroke
Displacement	197ml
Compression ratio	10.2:1
Max power output	10.3 / 7500 kw/r/min
Max torque	14.2 / 6000 N·m/r/ min
Clutch	Wet, multi-plate, Pressure splash
Transmission & Reverse	5 forward gears + 1 reverse
Steering mechanism	Steering handle bar
Chassis	FR 40×100, RR 50×100 Rectangular steel tube
Front suspension	Elevated front shock absorber
Rear suspension	Integrated outer mounting 7pcs leaf spring, Chan'an rear axle
Braking system	FR 130, RR 180, mechanical braking
Wheel tyre	FR / RR 4.50-12
Ground clearance	160 mm
Battery	12V / 9Ah
Starting method	Electric / Kick starter
Fuel tank capacity	Gasoline, 12L
Fuel consumption	≤354
Max speed	55km/h
Vehicle dimension
Wheel base	2470mm
Dimension	3300×1250×1200mm
Seats capacity	7 Passengers
Vehicle weight	Kerb 370 kgs, Pay load 750 kgs
Container load	12 sets in CKD / 20GP; 28 sets inB CKD / 40HQ
