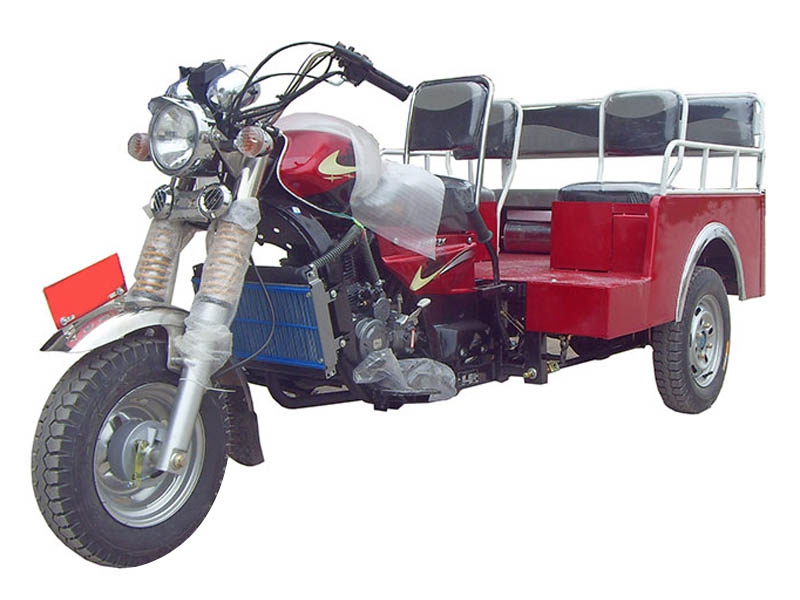

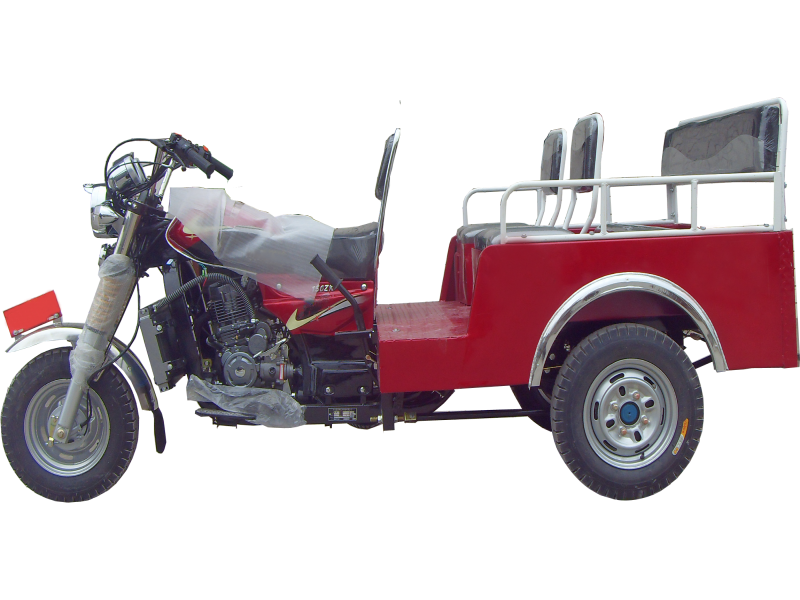

ZONLON Passenger Tricycle ZL200ZK-5S ZONLON Passenger Tricycle ZL200ZK-5S

ZONLON Passenger Tricycle ZL200ZK-5S

  • Place of Origin:Chongqing,China
  • Brand:ZONLON or OEM
  • Model No.:ZL200ZK-5S
  • Color:red,orange,blue,yellow,white,etc
  • Size3100×1250×1200mm

ZL200ZK-5S 200cc Water-Cooled Passenger Three Wheelers Motorcycle 5 Seaters

Engine
Engine TypeSingle cylinder, water cooling, 4-stroke
Displacement197ml
Compression ratio10.2:1
Max power output10.3 / 7500 kw/r/min
Max torque14.2 / 6000 N·m/r/ min
ClutchWet, multi-plate, Pressure splash
Transmission & Reverse 5 forward gears + 1 reverse
Steering mechanismSteering handle bar
ChassisFR 40×100, RR 50×100  Rectangular steel tube
Front suspensionElevated front shock absorber
Rear suspensionIntegrated outer mounting 7pcs leaf spring, Chan'an rear axle
Braking systemFR 130, RR 180, mechanical braking
Wheel tyreFR / RR 4.50-12
Ground clearance160 mm
Battery12V / 9Ah
Starting methodElectric / Kick starter
Fuel tank capacityGasoline, 12L
Fuel consumption≤354
Max speed55km/h
Vehicle dimension
Wheel base2270mm
Dimension3100×1250×1200mm
Seats capacity5 Passengers
Vehicle weightKerb 350 kgs, Pay load 600 kgs
Container load12 sets in CKD / 20GP ;  28 sets in CKD / 40HQ


Catalogue download: ZONLON-Motor-Tricycle-ZL200ZK-5S
