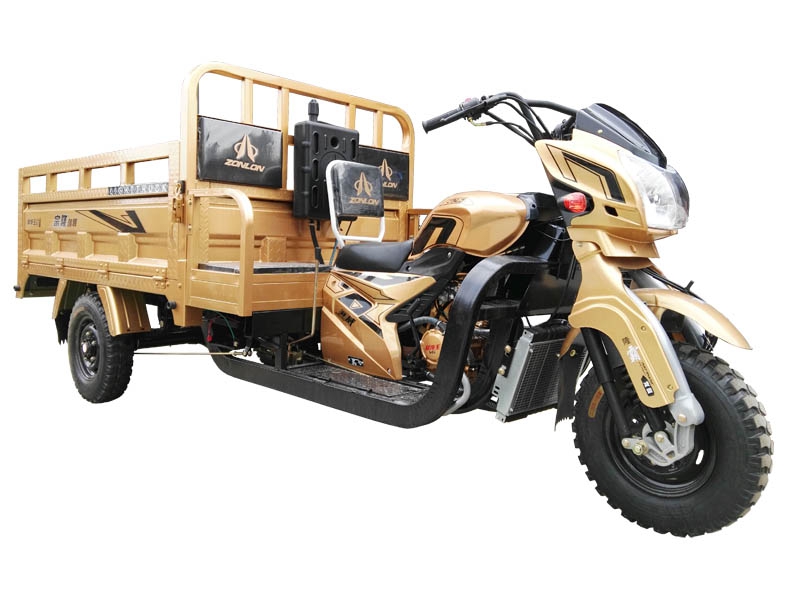

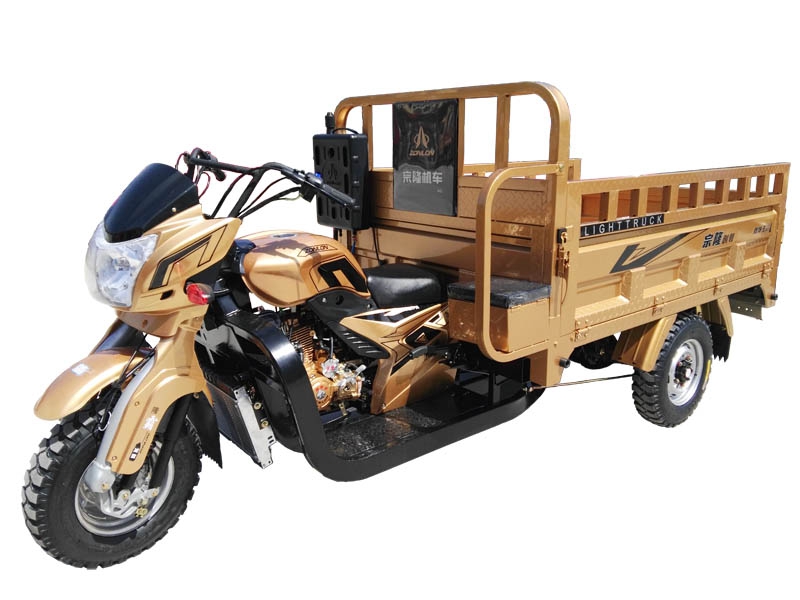

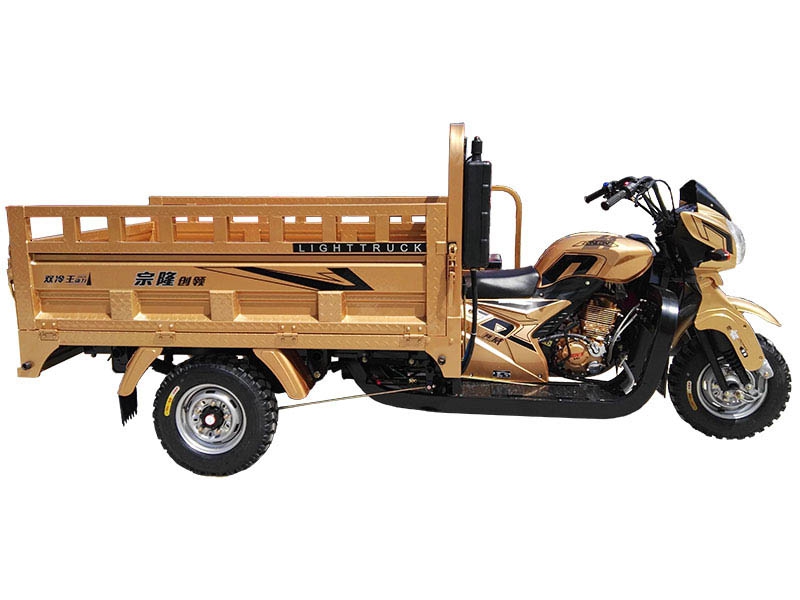

ZONLON Cargo Tricycle ZL250ZH-LW

ZL250ZH-LW 250cc Water-Cooled Cargo Three Wheelers

Engine
Engine type	Single cylinder, water cooling,4-stroke
Displacement	246.3ml
Compression ratio	10.0:1
Max power output	11.5 / 7000 kw/r/min
Max torque	19.5 / 5000 N·m/r/ min
Clutch	Wet multi-plate, Pressure splash
Transmission & Reverse	5 forward gears + 1 reverse
Steering mechanism	Steering handle bar
Chassis	Double keel chassis with extended footrest (FR / RR 50×100 rectangular steel tube)
Front suspension	Longba Type front shock absober
Rear suspension	7 pcs Pickup leaf spring, Chan'an rear axle
Braking system	FR 160, RR 220, mechanical braking
Wheel tire	FR / RR 4.50-12
Battery	12V / 9Ah
Starting method	Electric / Kick starter
Fuel tank	Gasoline, 13L
Fuel consumption	≤354
Ground clearance	160mm
Max speed	60km/h
Overall dimension
Wheel base	2230mm
Dimension	3400×1350×1550mm
Cargo box size	1800×1350mm
Vehicle weight	Kerb 470 kgs, Pay load 350 kgs
Container load	15 sets in CKD / 20GP; 32 sets in CKD / 40HQ
Optioal parts	1. Semi-Cabin 2. Cargo box size and type optional on request 3. Hydraulic braking system 4. Dumper system
