ZONLON Special Vehicle ZL200ZK-BA

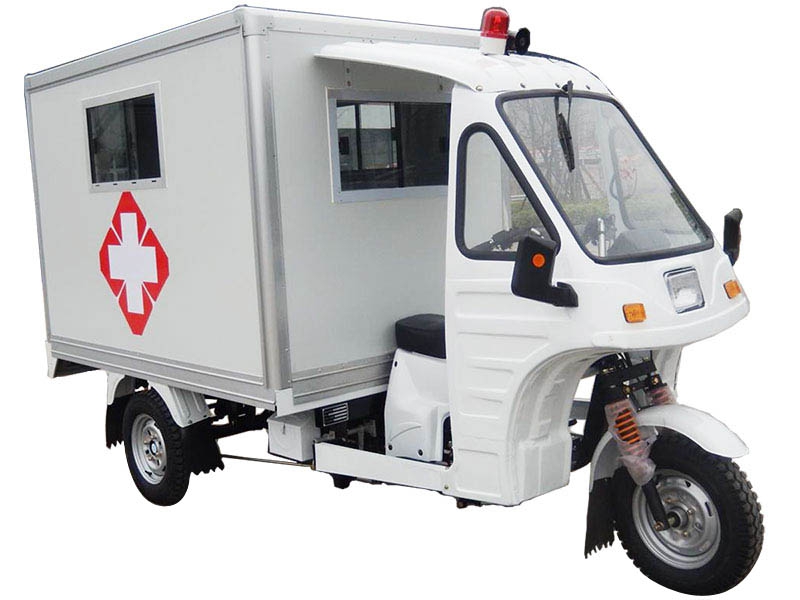

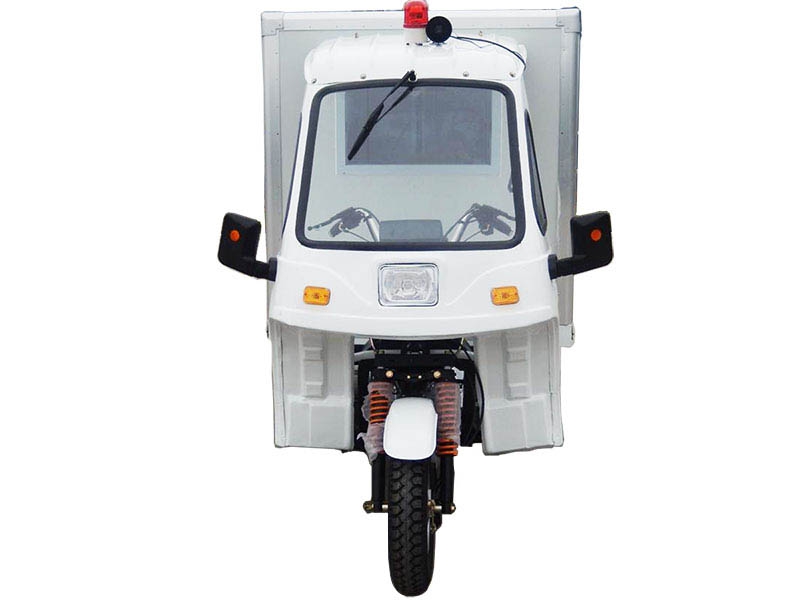

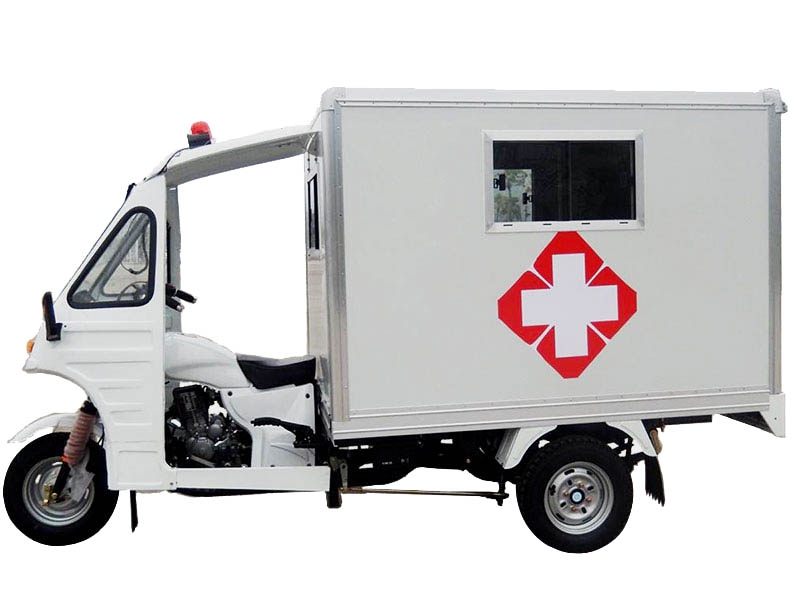

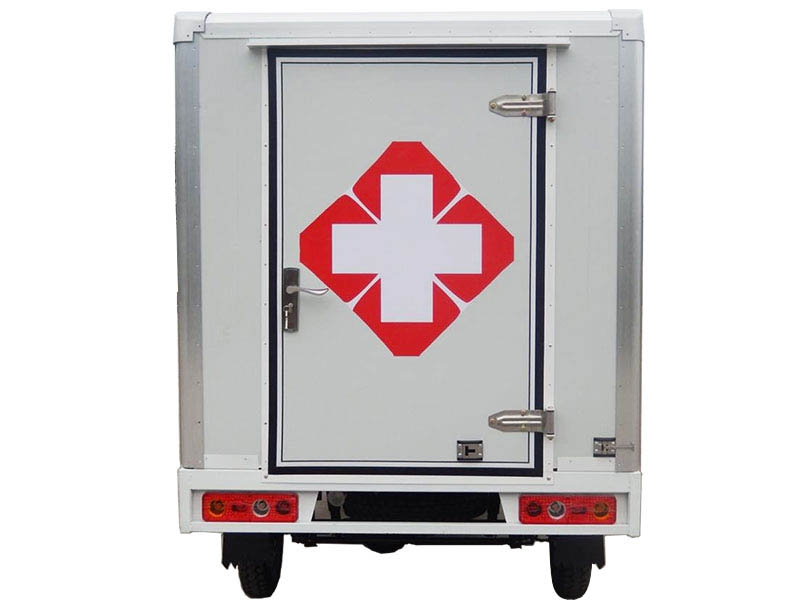

ZL200ZK-BA 200cc Closed Container Box Ambulance Motor Tricycle

Engine
Engine Type	Single cylinder, air cooling, 4-stroke
Displacement	193ml
Compression ratio	9.0:1
Max power output	10.2 / 8000 kw/r/min
Max torque	14.5 / 6000 N·m/r/ min
Clutch	Wet, multi-plate, Pressure splash
Transmission Reverse	5 forward gears + 1 reverse
Steering mechanism	Steering handle bar
Chassis	FR 50×100, RR 40×80 rectangular steel tube
Front suspension	Type 800 W270 solo front shock absorber with interchangeable wheel
Rear suspension	Greased outer mounting 5+4 combined leaf spring, semi-float Chan'an rear axle
Braking system	FR 130, RR 220, mechanical braking
Wheel tire	FR / RR 4.50-12
Battery	12V / 28Ah
Starting method	Electric / kick starter
Fuel tank	Gasoline, 12L
Fuel consumption	≤354
Ground clearance	160mm
Max speed	60km/h
Overall dimension
Wheel base	2490mm
Dimension	3700×1350×1990mm
Passenger cabin	2100×1350×1260mm
Seats capacity	1 patient + 2~3 doctors & nurses
Vehicle weight	Kerb 480 kgs, Pay load 350 kgs
Container load	8 sets in CKD / 20GP; 20 sets in CKD / 40HQ
