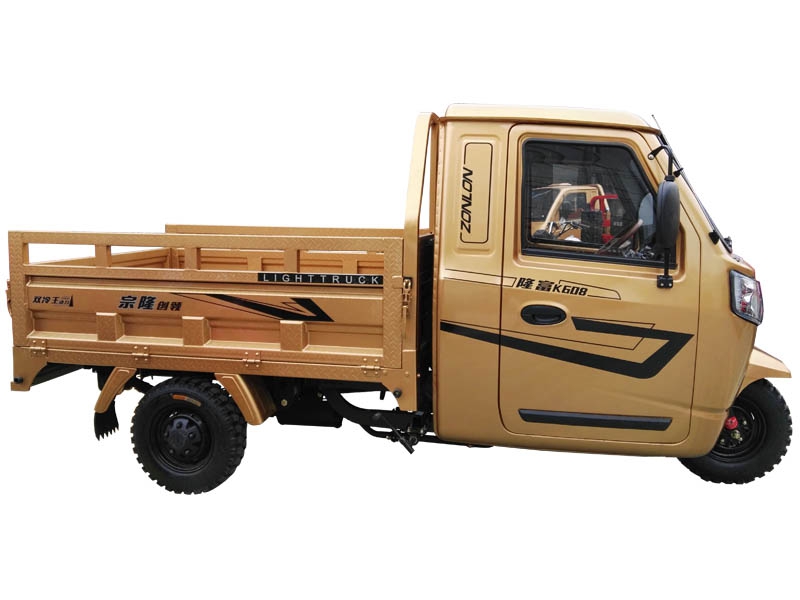

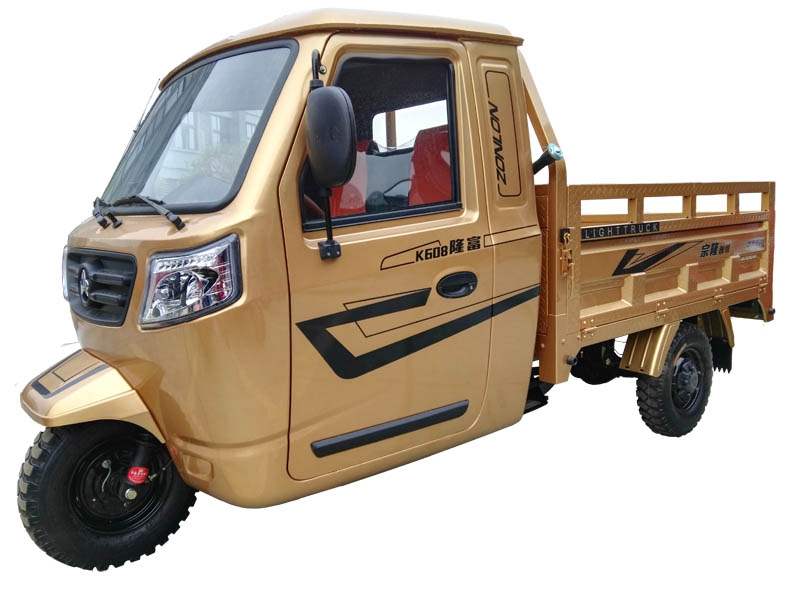

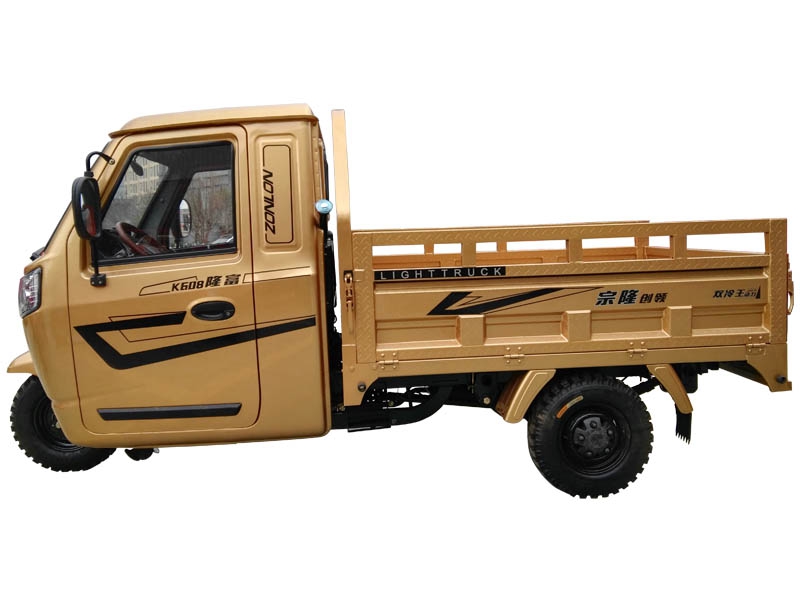

ZONLON Cargo Tricycle ZLK608

  • Place of Origin:Chongqing,China
  • Brand:ZONLON or OEM
  • Model No.:ZLK608
  • Color:red,orange,blue,yellow,white,etc
  • Size:3600×1350×1850mm

ZLK608 200cc Water-Cooled Cargo Truck Motor Tricycle

Engine
Engine typeSingle cylinder, water cooling, 4-stroke
Displacement197ml
Compression ratio10.2:1
Max power output10.3 / 7500 kw/r/min
Max torque14.2 / 6000 N·m/r/ min
ClutchWet multi-plate, Pressure splash
Transmission & Reverse5 forward gears + 1 reverse
Steering mechanismWheel steering
ChassisFR 40×100,RR 50×100 rectangular steel tube
Front suspensionType 285
Rear suspensionIntegrated 7 pcs Pickup leaf spring, Chan'an rear axle
Braking systemFR / RR 220, hydraulic braking
Wheel tireFR / RR 4.50-12
Battery12V /28Ah
Starting methodElectric / Kick starter
Fuel tankGasoline, 16L
Fuel consumption≤354
Ground clearance160mm
Max speed60km/h
Overall dimension
Wheel base2490mm
Dimension3600×1350×1850mm
Cargo box size1800×1350mm
Vehicle weightKerb 620 kgs, Pay load 350 kgs
Container load4 sets in CKD / 20GP;  8 sets in CKD / 40HQ
Optioal parts1. Cargo box size and type

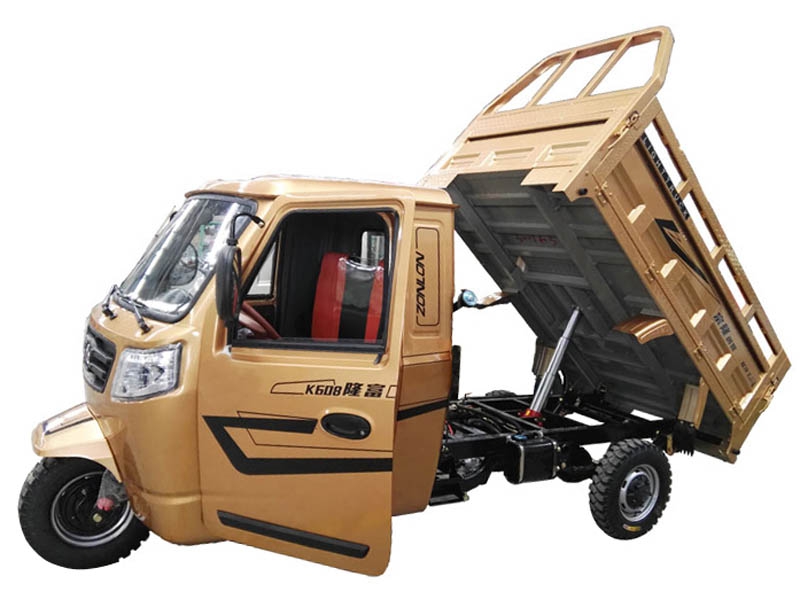

2. Dumper system
3. Hydraulic braking system
