ZONLON Cargo Tricycle ZLK800 ZONLON Cargo Tricycle ZLK800 ZONLON Cargo Tricycle ZLK800

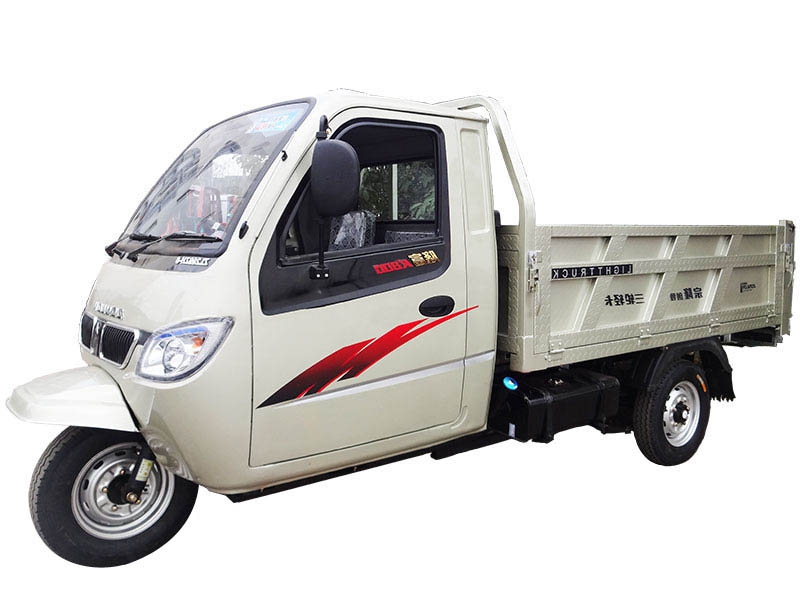

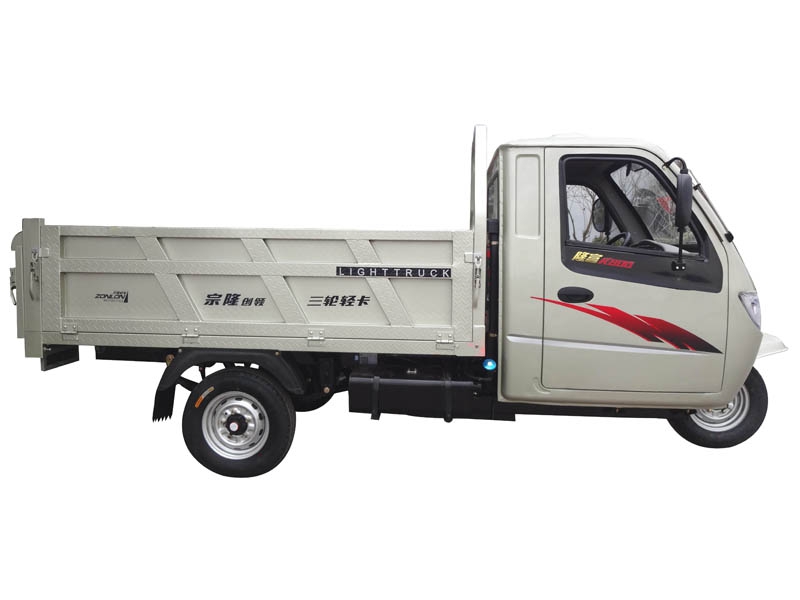

ZONLON Cargo Tricycle ZLK800

  • Place of Origin:Chongqing,China
  • Brand:ZONLON or OEM
  • Model No.:K800
  • Color:red,orange,blue,yellow,white,etc
  • Size:4000×1400×1900mm

ZLK800 970cc Water-Cooled Cargo Truck 3 Wheels Motorcycle

Engine
Engine typeType 465 engine
Displacement970ml
Compression ratio8.8:1
Max power output27 / 5000 kw/r/ min
Max torque67 / 3000-4000 N·m/r/ min
ClutchDry, single disc, diaphragm spring, constant mesh
Transmission & Reverse4 forward gears + 1 reverse
Steering mechanismWheel steering
Chassis50×100 Integrated chasshis made from rectangular tube
Front suspensionType 285
Rear suspensionIntegrated 7 pcs leaf spring for Pickup, Chan'an rear axle
Braking systemFR 220, RR 240,  Hydraulic braking
Wheel tireFR / RR 165R
Battery12V / 36Ah
Starting methodElectric
Fuel tankGasoline, 32L
Fuel consumption≤306
Ground clearance160mm
Max speed60km/h
Overall dimension
Wheel base2800mm
Dimension4000×1400×1900mm
Cargo box size2200×1400mm
Vehicle weightKerb 980 kgs, Pay load 350 kgs
Container load4 sets in CKD / 20GP;  8 sets in CKD / 40HQ
Optioal parts1. Cargo box size and type
2. Hydraulic braking  system
3. Dumper system
