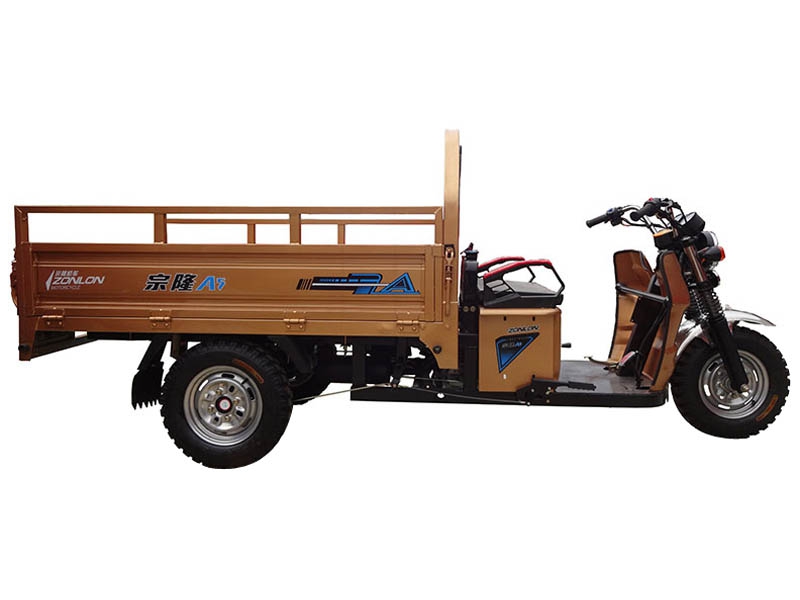

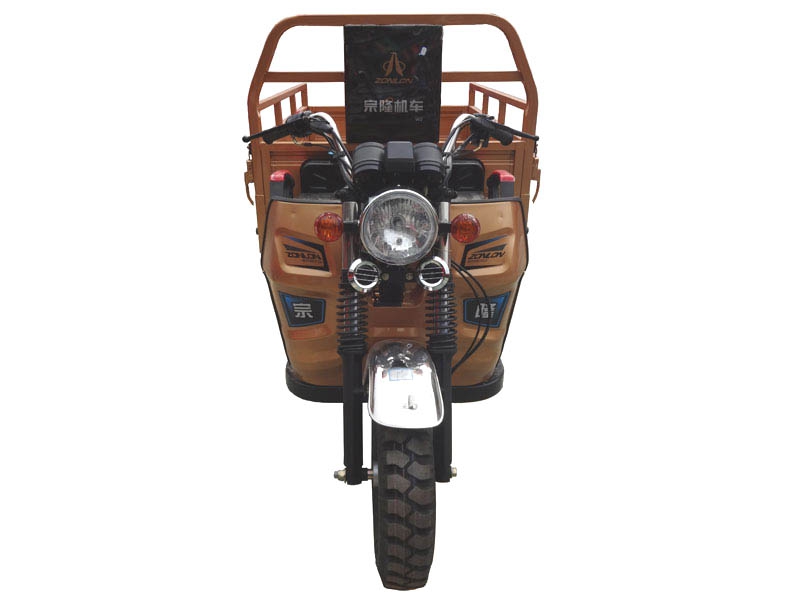

ZONLON Cargo Tricycle ZL150ZH-A5 ZONLON Cargo Tricycle ZL150ZH-A5 ZONLON Cargo Tricycle ZL150ZH-A5

ZONLON Cargo Tricycle ZL150ZH-A5

  • Place of Origin:Chongqing,China
  • Brand:ZONLON or OEM
  • Model No.:ZL150ZH-A5
  • Color:red,orange,blue,yellow,white,etc
  • Size:3200×1100×1320mm

ZL150ZH-A5 150cc Air-Cooled Cargo Load Gasoline Tricycle


Engine
Engine typeSingle cylinder, air cooling,4-stroke
Displacement149ml
Compression ratio9.1:1
Max power output8.5 / 8000 kw/r/min
Max torque10 / 7500 N·m/r/ min
ClutchWet multi-plate, Pressure splash
Transmission & Reverse5 forward gears + 1 reverse
Steering mechanismSteering handle bar
ChassisFR / RR 40×60 rectangular steel tube
Front suspensionFront shock absorber with spring
Rear suspensionIntegrated 6 pcs leaf spring, Chan'an automotive rear axle
Braking systemFR 130, RR 160, mechanical braking
Wheel tireFR / RR 4.50-12
Battery12V / 9Ah
Starting methodElectric / Kick starter
Fuel tankGasoline, 7L
Fuel consumption≤354
Ground clearance160mm
Max speed55km/h
Overall dimension
Wheel base2250mm
Dimension3200×1100×1320mm
Cargo box size1600×1100mm
Vehicle weightKerb 320 kgs, Pay load 300 kgs
Container load24 sets in CKD / 20GP;  50 sets in CKD 40HQ
Optioal partsSemi-cabin with circular headlamp



Catalogue download: ZONLON-Motor-Tricycle-ZL150ZH-A5
