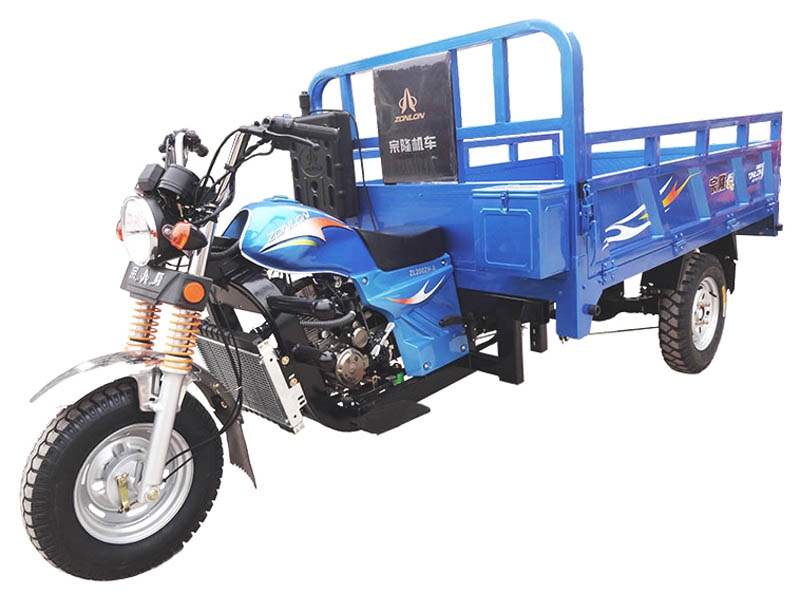

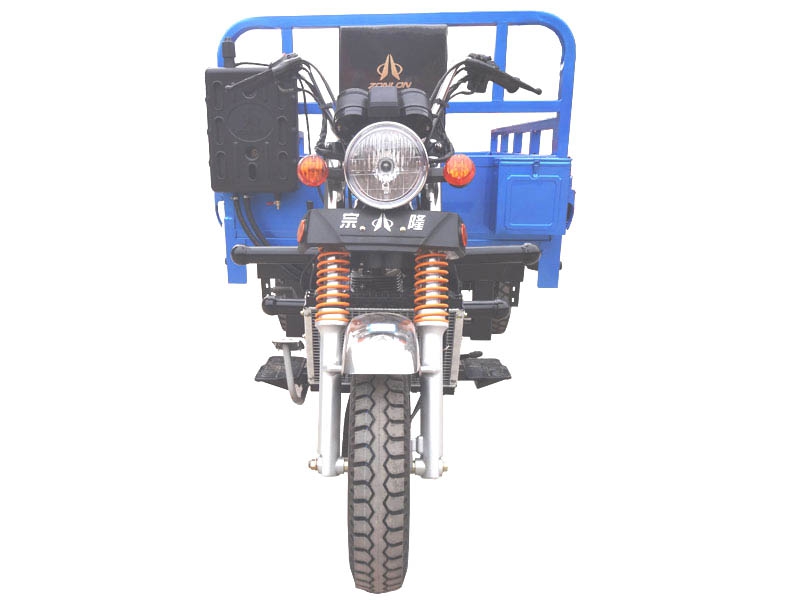

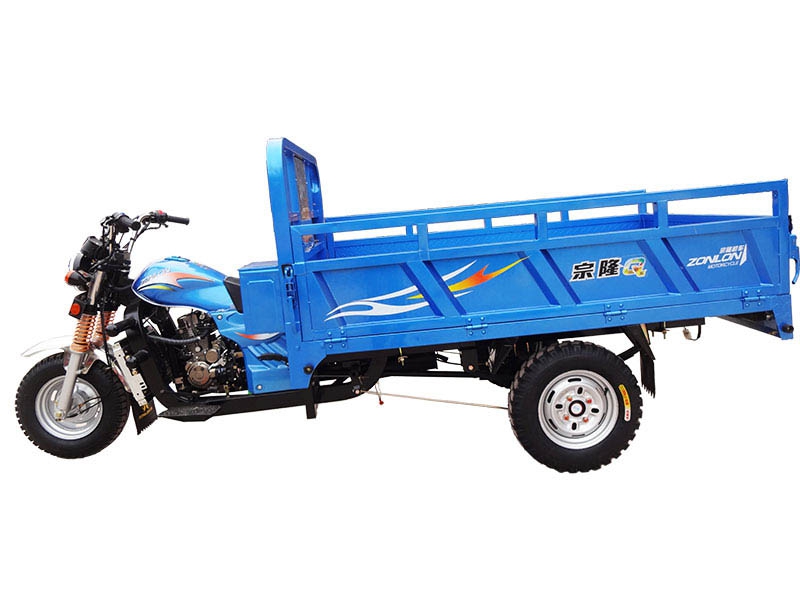

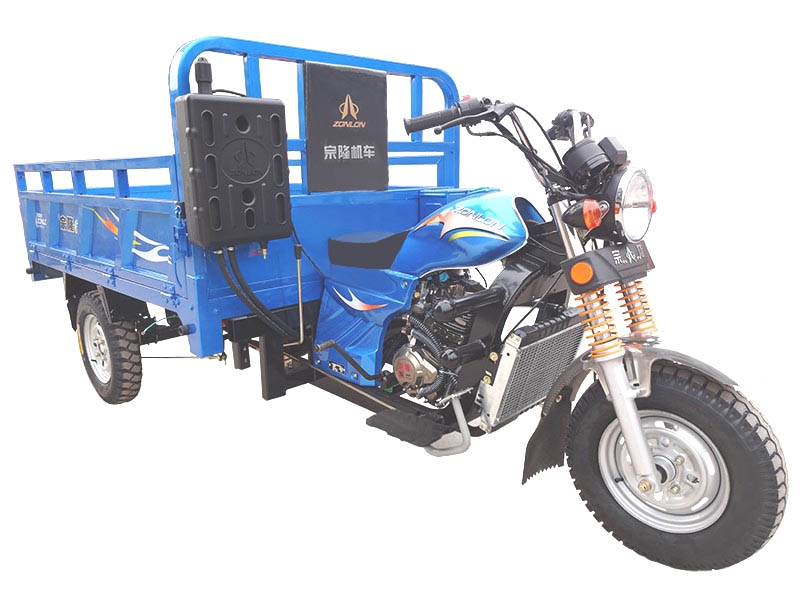

ZONLON Cargo Tricycle ZL150ZH-Q

ZL150ZH-Q 150cc Air-Cooled Light-Duty Cargo Motor Tricycle

Engine
Engine Type	Single cylinder, air cooling, 4-stroke
Displacement	149ml
Compresseion ratio	9.1:1
Max Power Output	8.5 / 8000 kw/r/min
Max Torque	10 / 7500 N·m/r/ min
Clutch	Wet multi-plate,pressure splash
Transmission & Reverse	5 forward gears + 1 reverse
Steering mechanism	Steering handle bar
Chassis	40×80 rectangular tube, ball tipped bumper, Changpao big footrest
Front suspension	232# with outer spring Φ43 Chopper shock absorber
Rear suspension	760 Integrated 5 pieces leaf spring; light duty GII rear axle with booster
Braking system	FR 130, RR 180, Mechanical braking
Wheel tire	FR / RR 4.50-12
Battery	12V / 9Ah
Starting method	Electric / Kick starter
Fuel tank	Gasoline, 12L
Fuel consumption	≤354
Ground clearance	160 mm
Max speed	55 km/h
Overall dimension
Wheel base	2200 mm
Dimension	3290×1200×1380 mm
Cargo box size	1800×1200 mm
Vehicle weight	Kerb 320 kgs, Pay load 300 kgs
Container load	30 sets in CKD / 20GP; 60 sets in CKD / 40HQ
Optional parts	Semi-Cabin
