ZONLON Cargo Tricycle ZL150ZH-QL ZONLON Cargo Tricycle ZL150ZH-QL ZONLON Cargo Tricycle ZL150ZH-QL ZONLON Cargo Tricycle ZL150ZH-QL

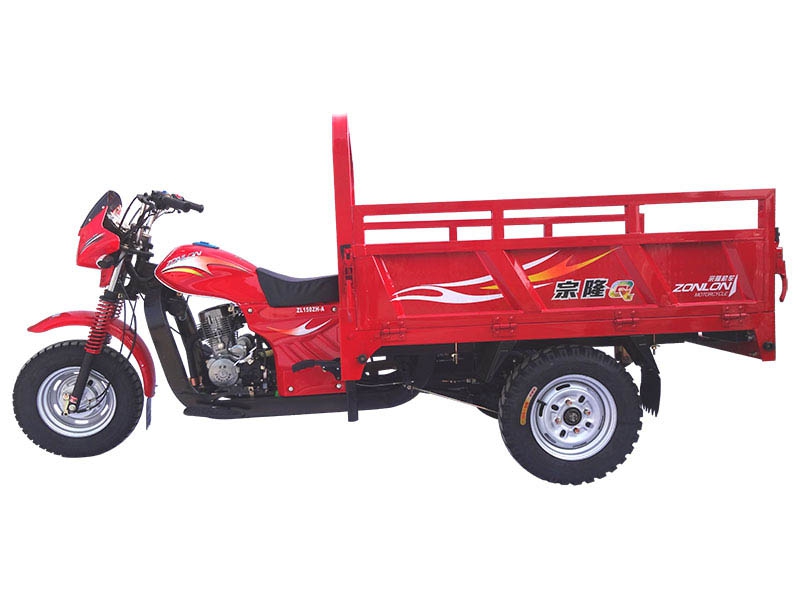

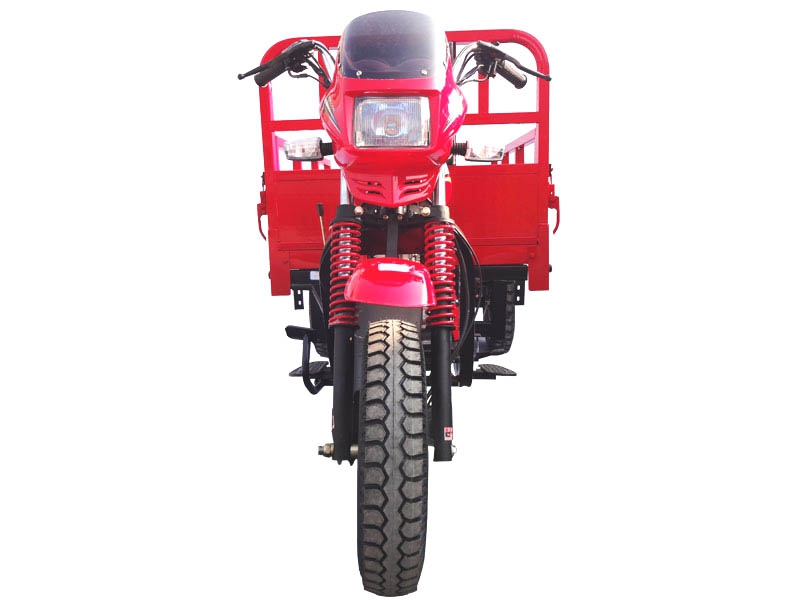

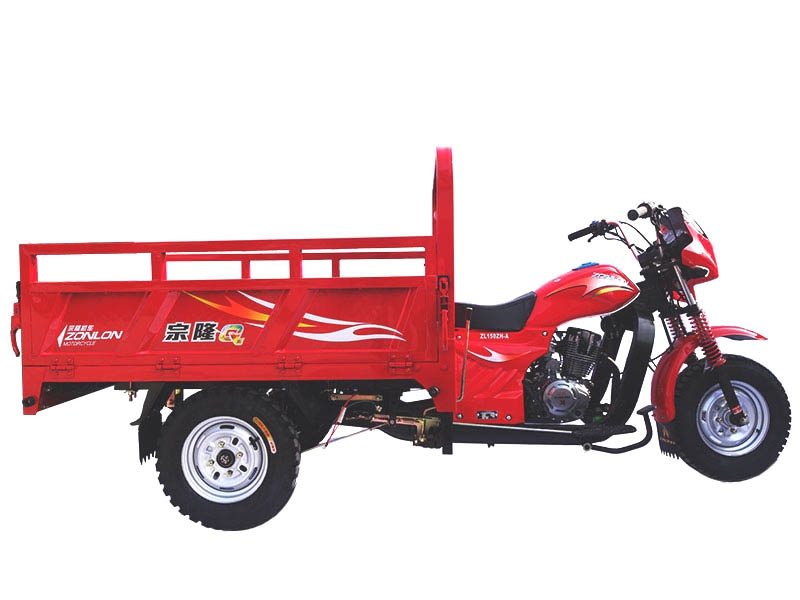

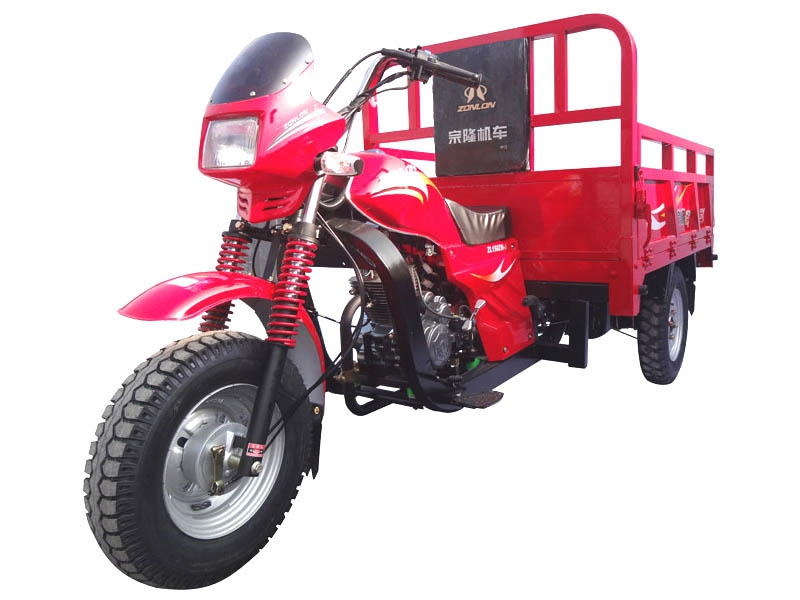

ZONLON Cargo Tricycle ZL150ZH-QL

  • Place of Origin:Chongqing,China
  • Brand:ZONLON or OEM
  • Model No.:ZL150ZH-QL
  • Color:red,orange,blue,yellow,white,etc
  • Size:3490×1250×1380mm

ZL150ZH-QL 150cc Air-Cooled Goods Truck Three Wheelers

Engine
Engine typeSingle cylinder, air cooling,4-stroke
Displacement149ml
Compression ratio9.1:1
Max power output8.5 / 8000 kw/r/min
Max torque10 / 7500 N·m/r/min
ClutchWet multi-plate, pressure splash
Transmission & Reverse5 forward gears + 1 reverse
Steering mechanismSteering handle bar
Chassis40×80 rectangular steel tube
Front suspensionQ1 Solo stem front shock absorber
Rear suspensionIntegrated 7 pieces leaf spring, rear axle with booster (4 bolts) with damper
Braking systemFR 130, RR 180, mechanical braking
Wheel tireFR / RR 4.50-12
Battery12V / 9Ah
Starting methodElectric / Kick starter
Fuel tankGasoline, 12L
Fuel consumption≤354
Ground clearance160mm
Max speed55km/h
Overall dimension
Wheel base2370mm
Dimension3490×1250×1380mm
Cargo box size2000×1250mm
Vehicle weightKerb 360 kgs, Pay load 300 kgs
Container load25 sets in CKD / 20GP;  52 sets in CKD/ 40HQ
Optioal parts1. Semi-Cabin
2. Dumper system


Catalogue download: ZONLON-Motor-Tricycle-ZL150ZH-QL
