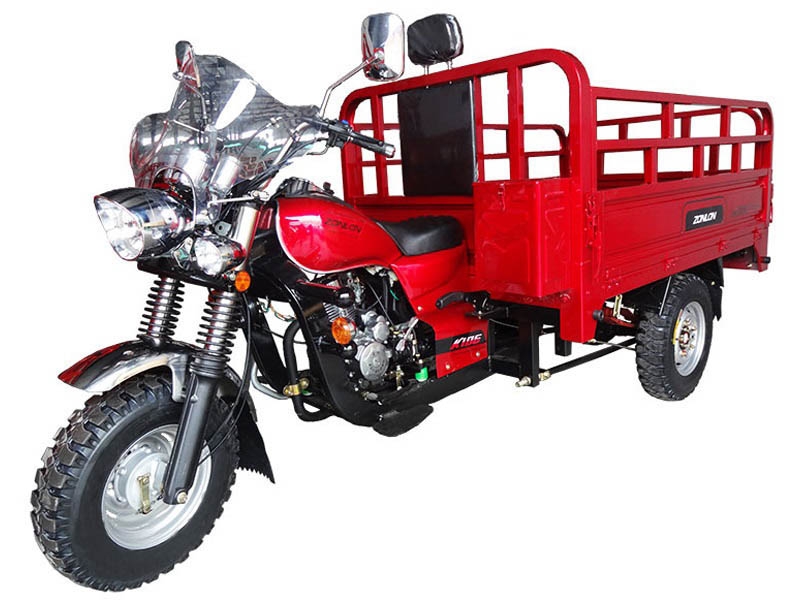

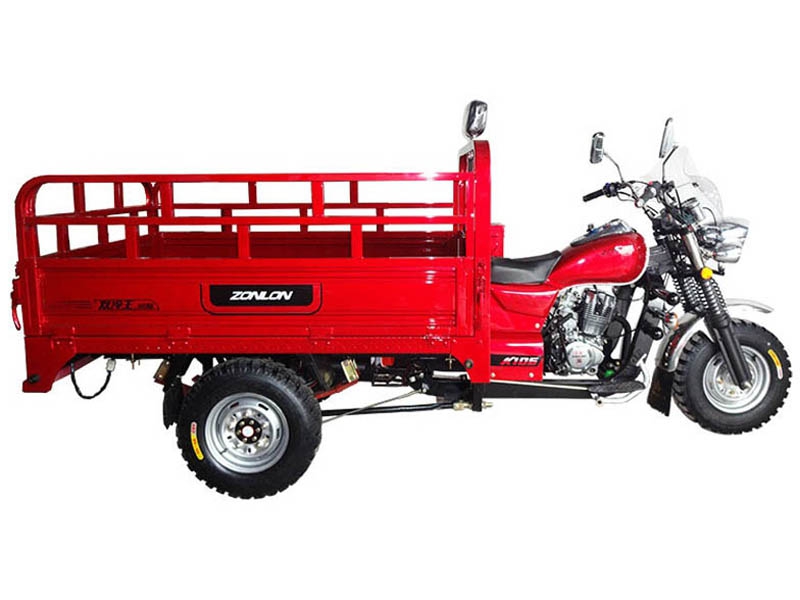

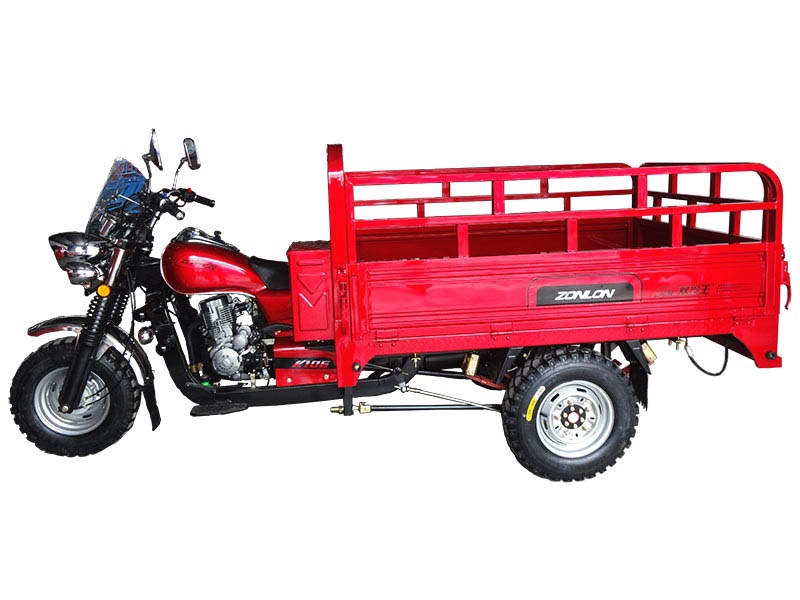

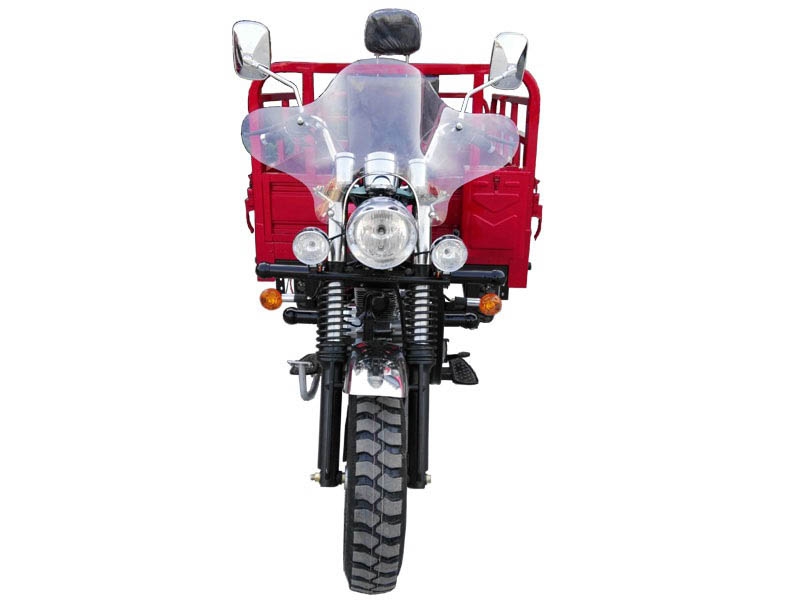

ZONLON Cargo Tricycle ZL150ZH-TZ

  • Place of Origin:Chongqing,China
  • Brand:ZONLON or OEM
  • Model No.:ZL150ZH-TZ
  • Color:red,orange,blue,yellow,white,etc
  • Size:3300×1350×1380mm

ZL150ZH-TZ 150cc Air-Cooled Cargo Motor Tricycle

Engine
Engine typeSingle cylinder, air cooling, 4-stroke
Displacement149ml
Compression ratio9.1:1
Max power output8.5 / 8000 kw/r/min
Max torque10 / 7500 N·m/r/ min
ClutchWet multi-plate, Pressure splash
Transmission & Reverse5 forward gears + 1 reverse
Steering mechanismSteering handle bar
ChassisFR 40×80 RR 40×60 rectangular steel tube
Front suspensionSpecial front shock absorber
Rear suspensionCombined 3+2 pcs leaf spring, Chan'an rear axle (5 bolts) with damper
Braking systemFR 160, RR 220, mechanical braking
Wheel tireFR / RR 5.00-12
Battery12V / 9Ah
Starting methodElectric / Kick starter
Fuel tankGasoline, 12L
Fuel consumption≤354
Ground clearance160mm
Max speed55km/h
Overall dimension
Wheel base2370mm
Dimension3300×1350×1380mm
Cargo box size1800×1200mm
Vehicle weightKerb 360 kgs,  Pay load 300 kgs
Container load22 sets in CKD / 20GP ;  45 sets in CKD / 40HQ
Optioal parts1. Semi-Cabin
2. Dumper system


Catalogue download: ZONLON-Motor-Tricycle-ZL150ZH-TZ
