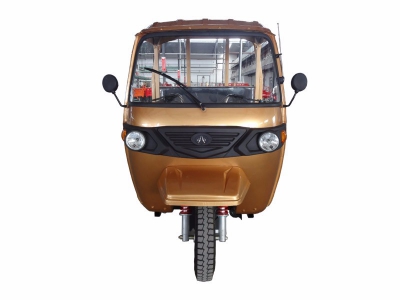

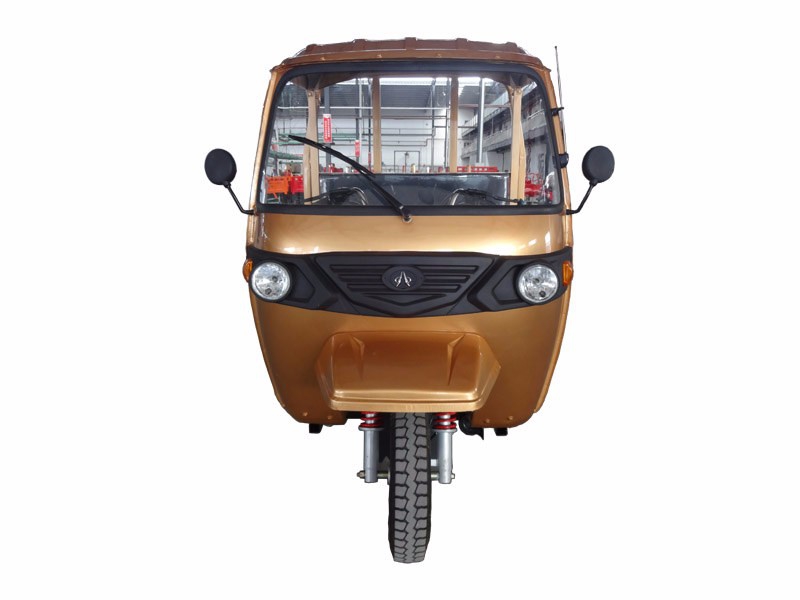

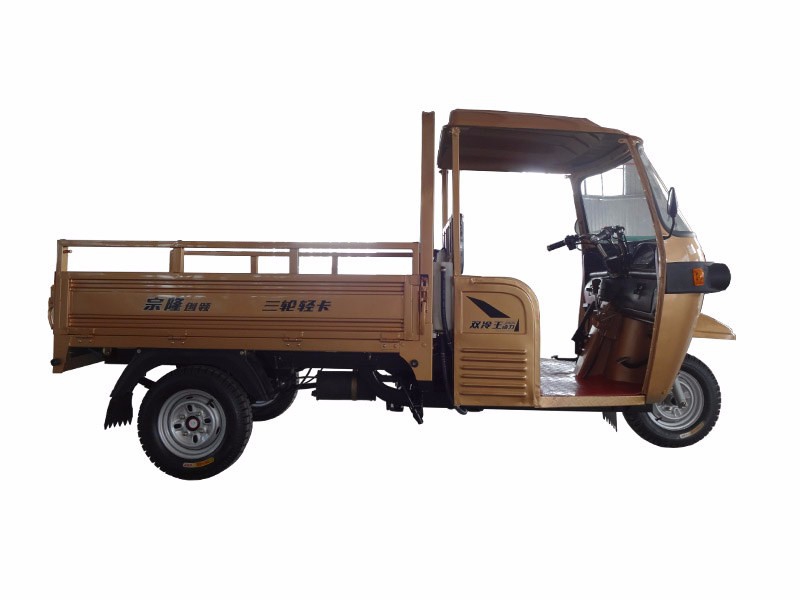

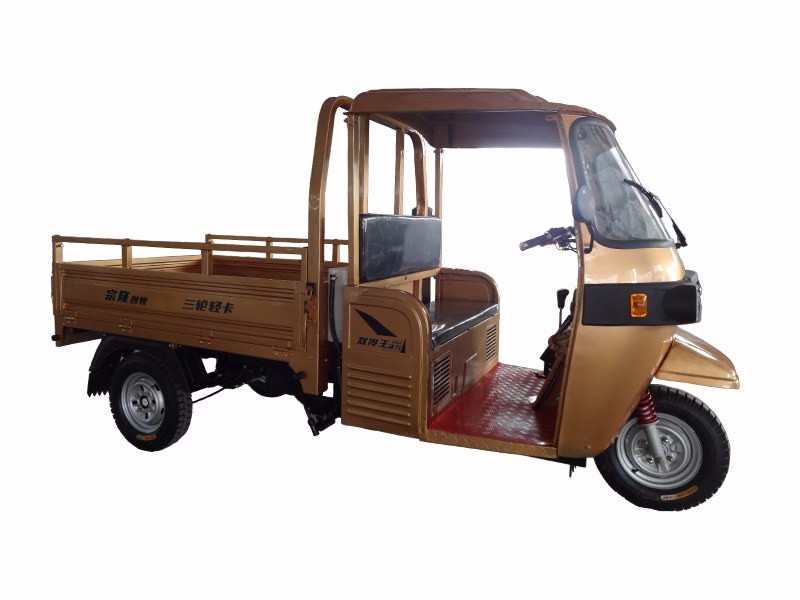

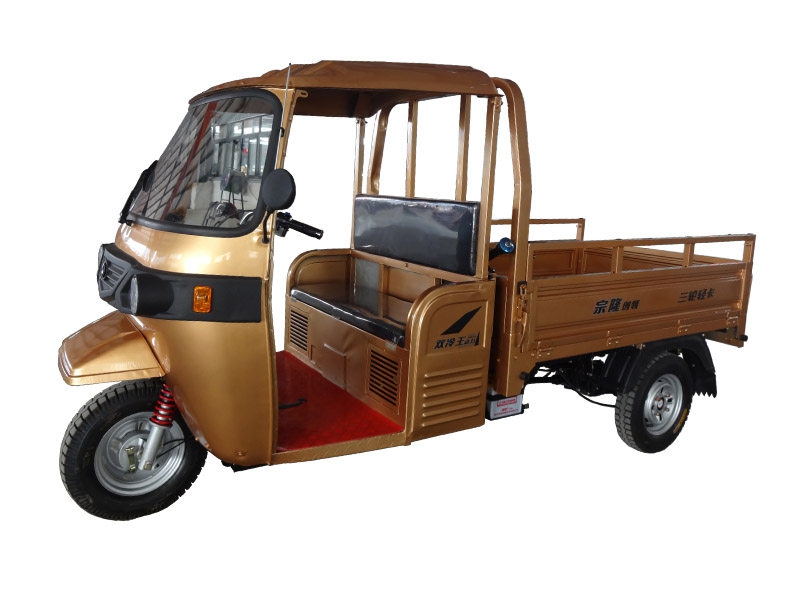

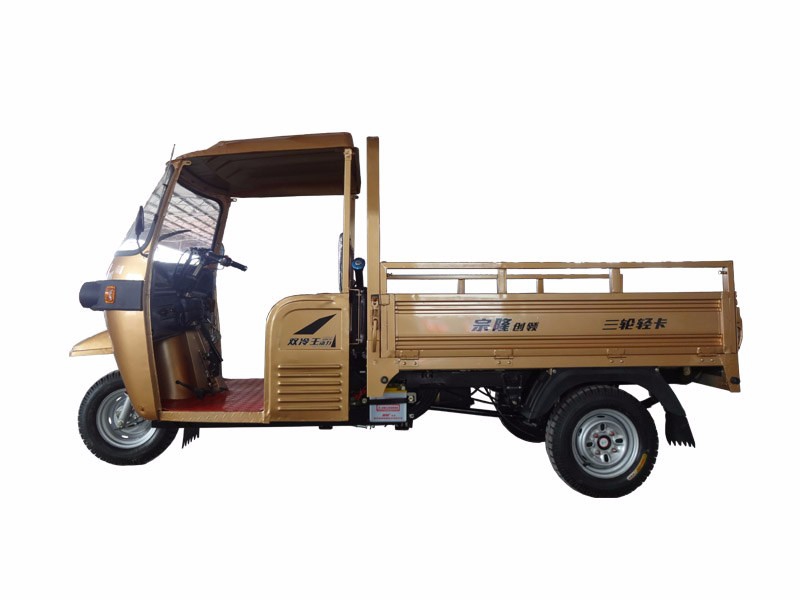

ZONLON Tricycle ZL200ZH-BT

ZL200ZH-BT 200cc Water-Cooled Cargo Dump BAJA Tipper Motor Tricycle

Engine
Engine Type	Single cylinder, water cooling, 4-stroke
Displacement	197ml
Compression ratio	10.2:1
Max power output	10.3 / 7500 kw/r/min
Max torque	14.2 / 6000 N·m/r/ min
Clutch	Wet, multi-plate, Pressure splash
Transmission & Reverse	5 forward gears + 1 reverse
Steering mechanism	Steering handle bar
Chassis	FR 40×100, RR 50×100 rectangular steel tube
Front suspension	Type 800 W270 solo front shock absorber with interchangeable wheel
Rear suspension	Integrated 7 pcs leaf spring for Pickup, Chan'an rear axle
Braking system	FR130, RR 220, mechanical braking
Wheel tire	FR / RR 4.50-12
Battery	12V / 9Ah
Starting method	Electric / kick starter
Fuel tank	Gasoline, 12L
Fuel consumption	≤354
Ground clearance	160mm
Max speed	60km/h
Overall dimension
Wheel base	2350mm
Dimension	3500×1350×1820mm
Cargo box size	2000×1350×590mm
Cabin	Semi baja type cabin
Dumping Device	G6 single lifting cylinder
Vehicle weight	Kerb 500kgs, Pay laod 350 kgs
Container load	10 sets in CKD / 20GP; 22 sets in CKD / 40HQ
