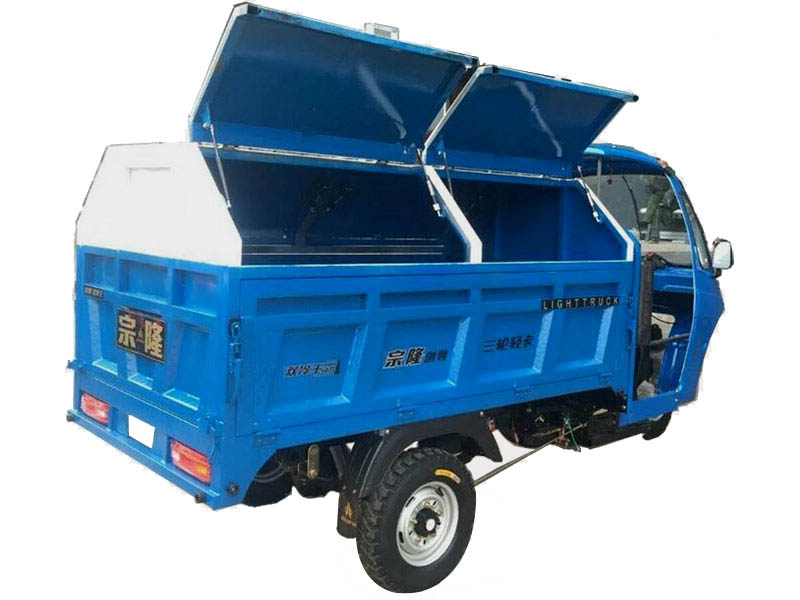

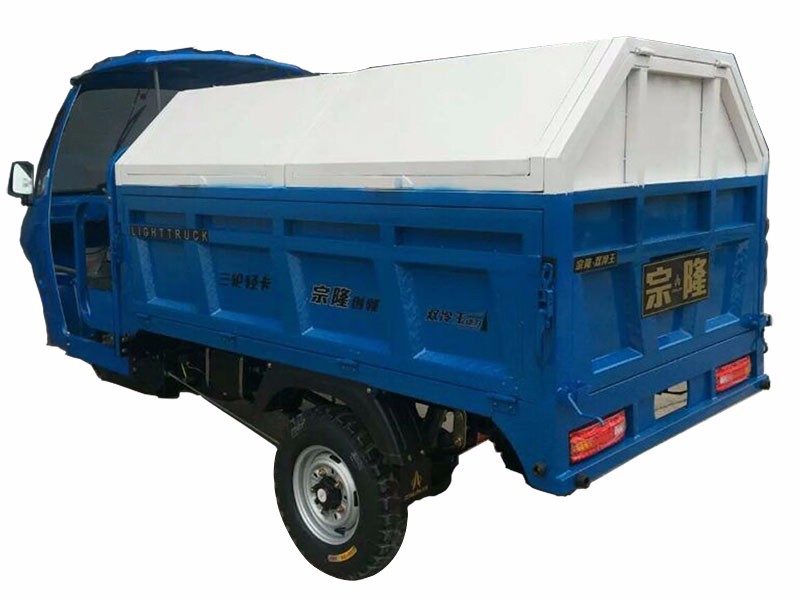

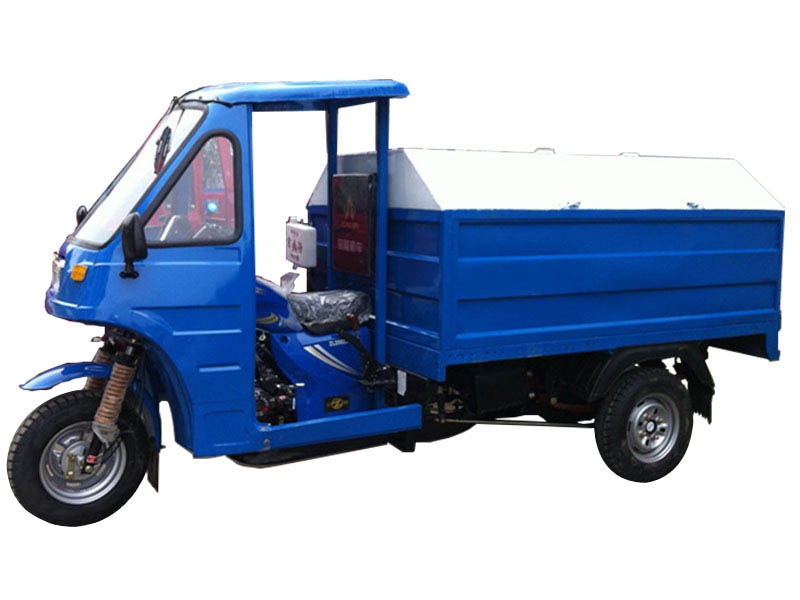

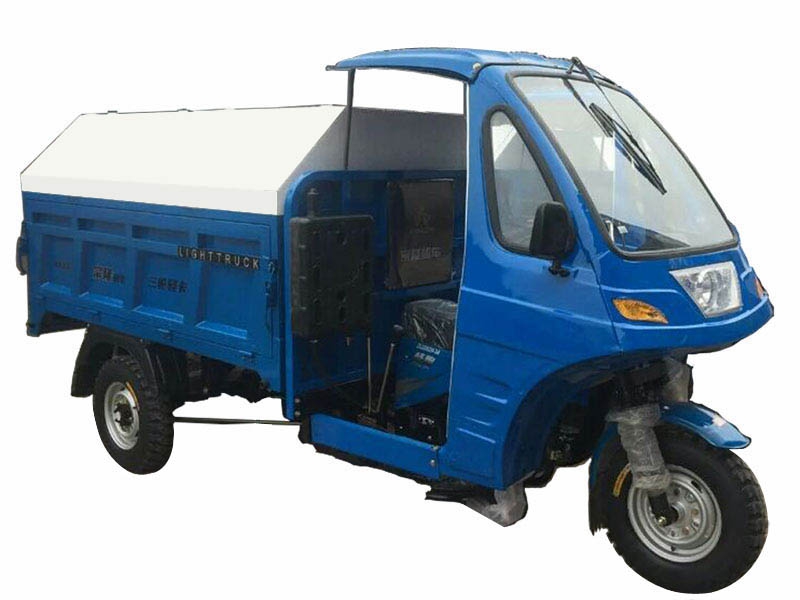

ZONLON Garbage Tricycle ZL200ZH-GD

ZL200ZH-GD 200cc Air-Cooled Garbage Dumper Motor Tricycle

Engine
Engine Type	Single cylinder, air cooling, 4-stroke
Displacement	197ml
Compression ratio	10.2:1
Max power output	10.3 / 7500 kw/r/min
Max torque	14.2 / 6000 N·m/r/ min
Clutch	Wet, multi-plate, Pressure splash
Transmission & Reverse	5 forward gears + 1 reverse
Tipper System	Single, 2-stage,hydraulic cylinder
Steering mechanism	Steering handle bar
Chassis	FR 50×100, RR 40×80 rectangular steel tube
Front suspension	Type 800 W270 solo front shock absorber with interchangeable wheel
Rear suspension	Greased outer mounting 5+4 combined leaf spring, semi-float Chan'an rear axle
Braking system	FR 130,RR 220, mechanical braking
Wheel tire	FR / RR 4.50-12
Battery	12V / 28Ah
Starting method	Electric / kick starter
Fuel tank	Gasoline, 12 L
Fuel consumption	≤354
Ground clearance	160mm
Max speed	60km/h
Overall dimension
Wheel base	2200mm
Dimension	3400×1350×1850mm
Cargo box size	1800×1350x1300mm
Cabin	Steel semi cabin with square headlight
Dumping Device	G6 single lifting cylinder
Vehicle weight	Kerb 520 kgs, Pay load 350 kgs
Container load	10 sets in CKD / 20GP; 22 sets in CKD / 40HQ
