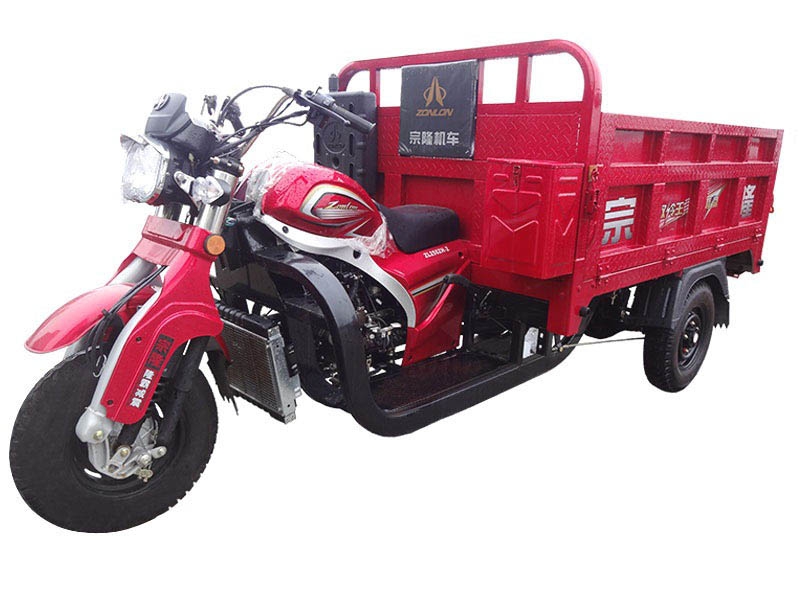

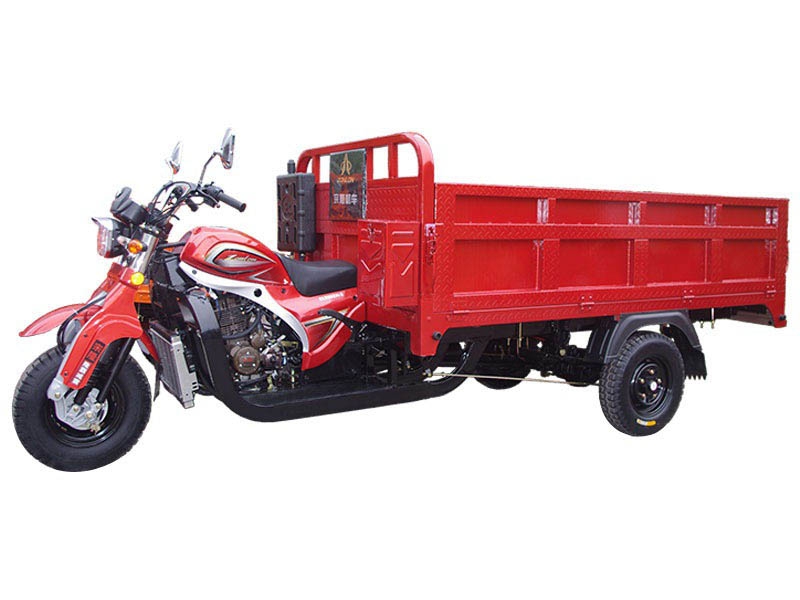

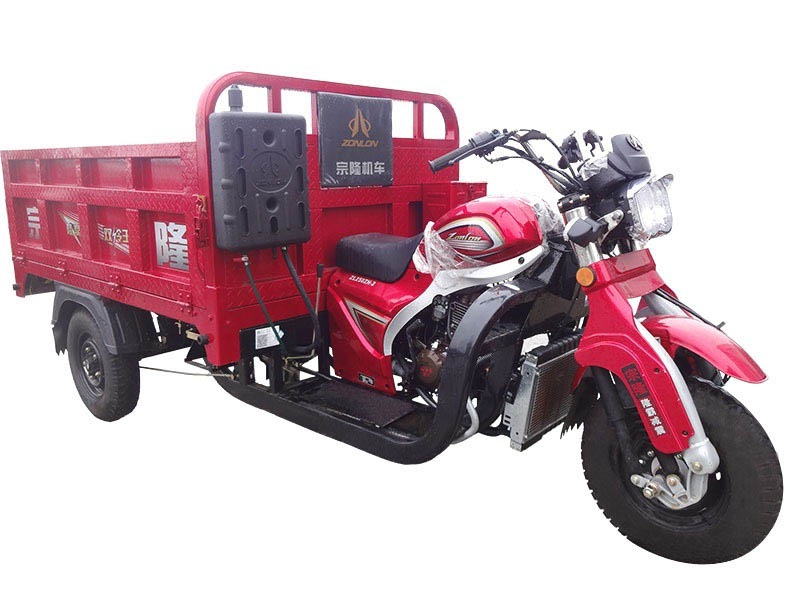

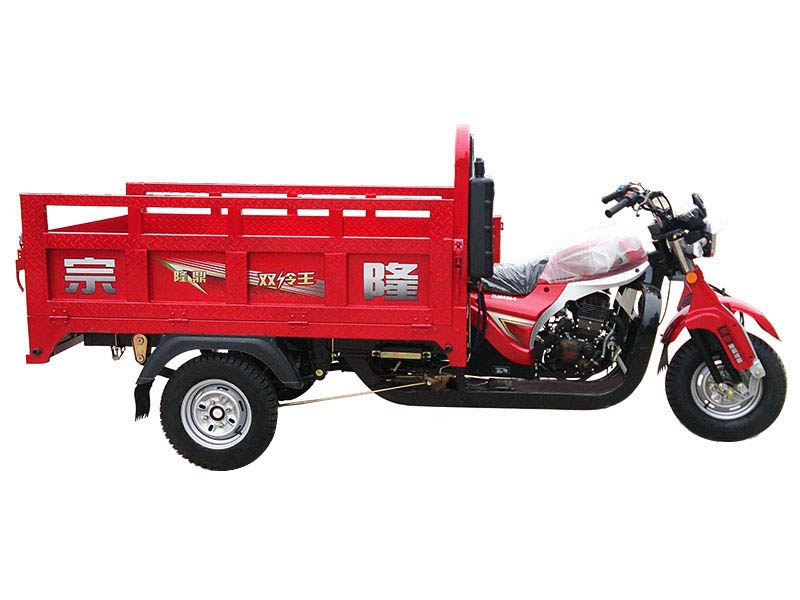

ZONLON Cargo Tricycle ZL200ZH-LD

  • Place of Origin:Chongqing,China
  • Brand:ZONLON or OEM
  • Model No.:ZL200ZH-LD
  • Color:red,orange,blue,yellow,white,etc
  • Size:3400×1350×1550mm

ZL200ZH-LD 200cc Water-Cooled Cargo Truck Three Wheels

Engine
Engine typeSingle cylinder, water cooling, 4-stroke
Displacement197ml
Compression ratio10.2:1
Max power output10.3 / 7500 kw/r/min
Max torque14.2 / 6000 N·m/r/ min
ClutchWet multi-plate, Pressure splash
Transmission & Reverse 5 forward gears + 1 reverse
Steering mechanismSteering handle bar
ChassisDouble keel chassis FR/RR 50×100 rectangular steel tube
Front suspensionLongba Type front shock absober
Rear suspension7 pcs Pickup leaf spring, Chan'an rear axle
Braking systemFR160, RR 220, mechanical braking
Wheel tireFR / RR 4.50-12
Battery12V / 9Ah
Starting methodElectric / Kick starter
Fuel tankGasoline, 13L
Fuel consumption≤354
Ground clearance160mm
Max speed60km/h
Overall dimension
Wheel base2230mm
Dimension3400×1350×1550mm
Cargo box size1800×1350mm
Vehicle weightKerb 460 kgs, Pay load 350 kgs
Container load15 sets in CKD / 20GP;  32 sets in CKD / 40HQ
Optioal parts1. Semi-Cabin
2. Cargo box size and type optional on request
3. Hydraulic braking  system
4. Dumper system


Catalogue download: ZONLON-Motor-Tricycle-ZL200ZH-LD
