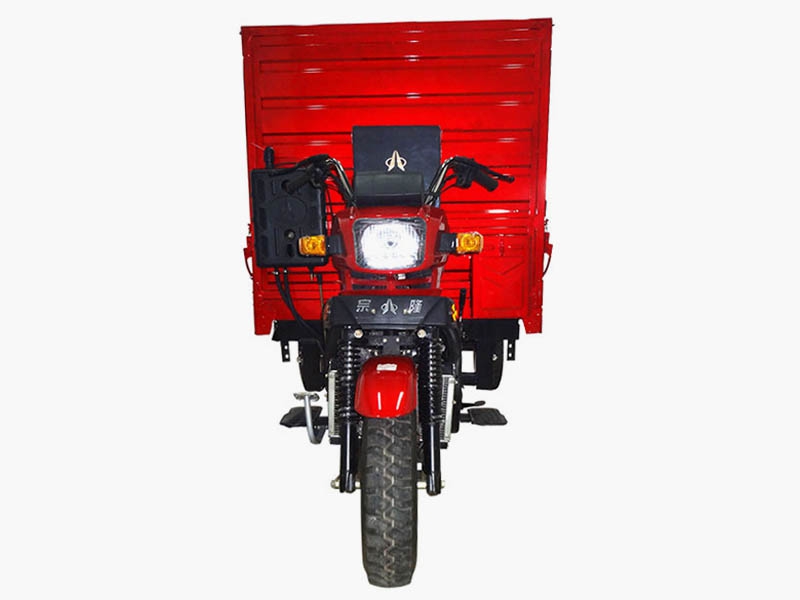

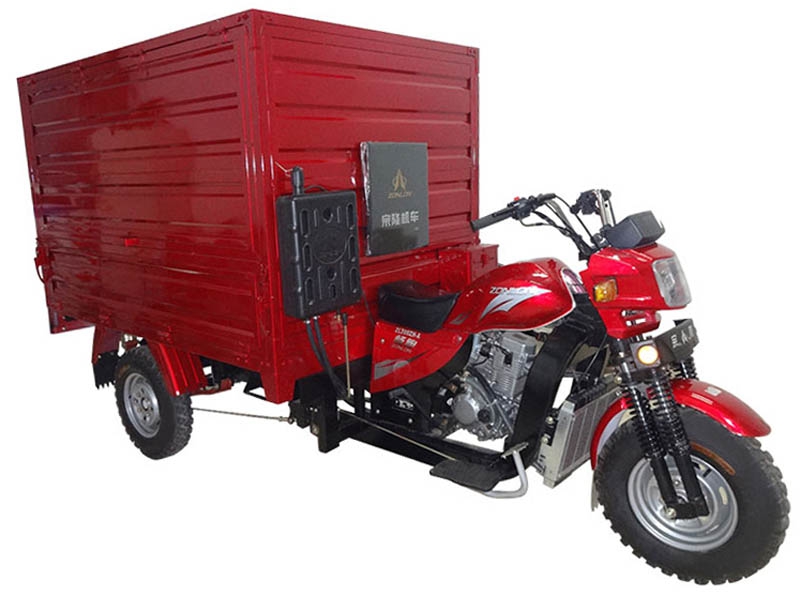

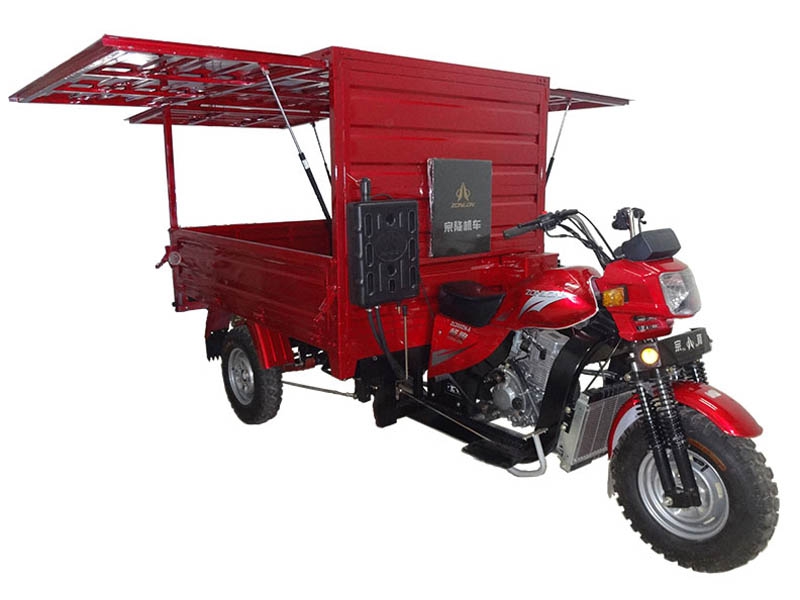

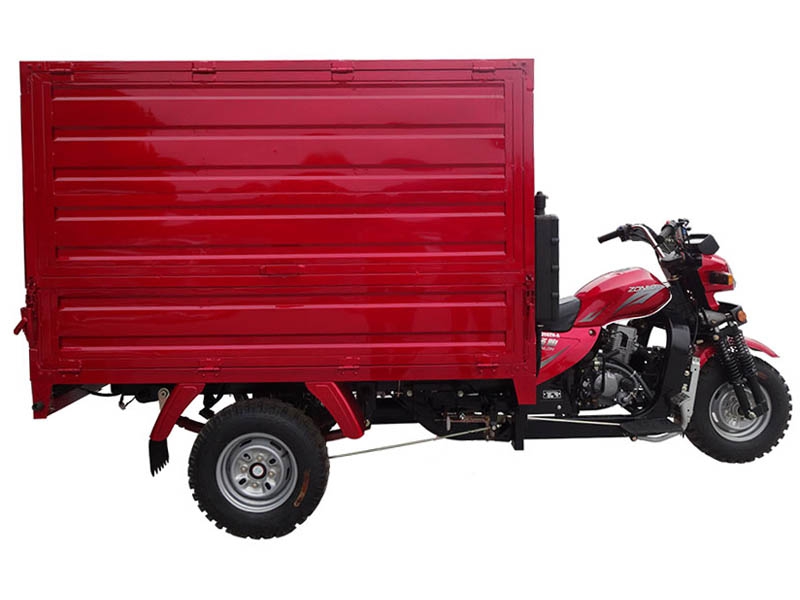

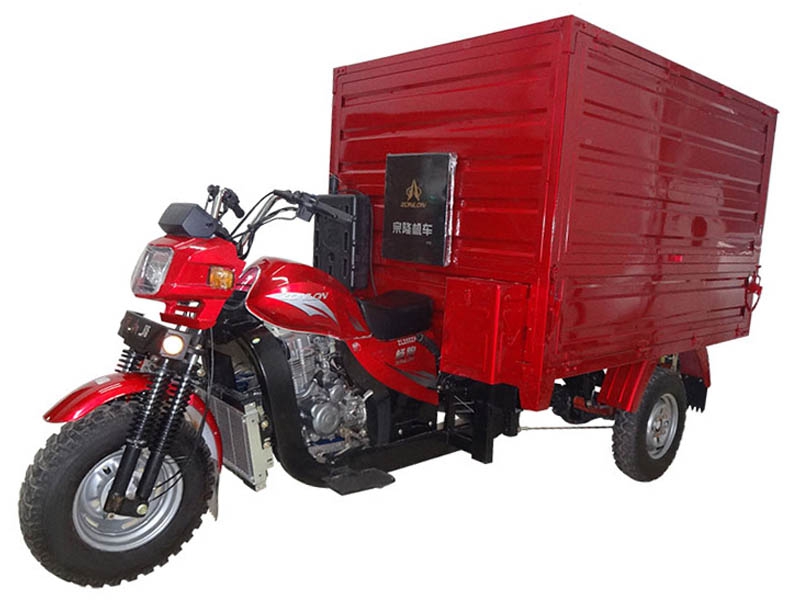

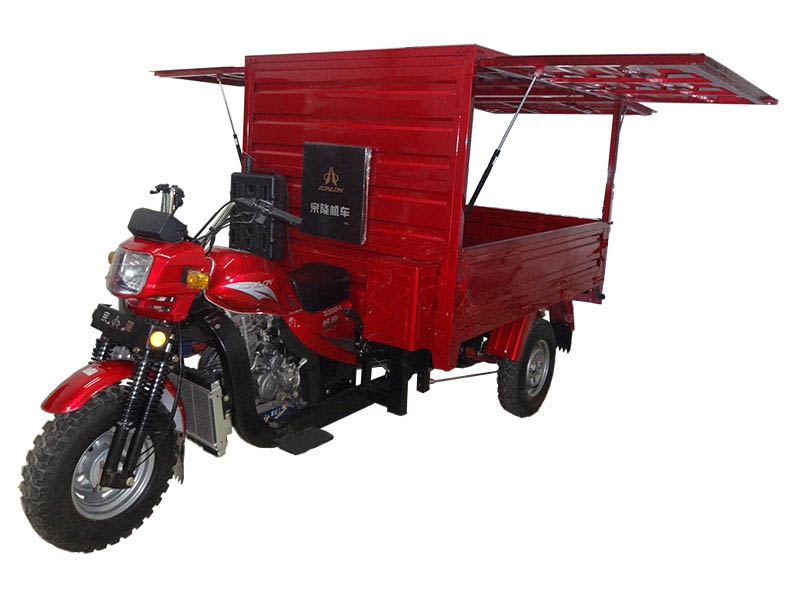

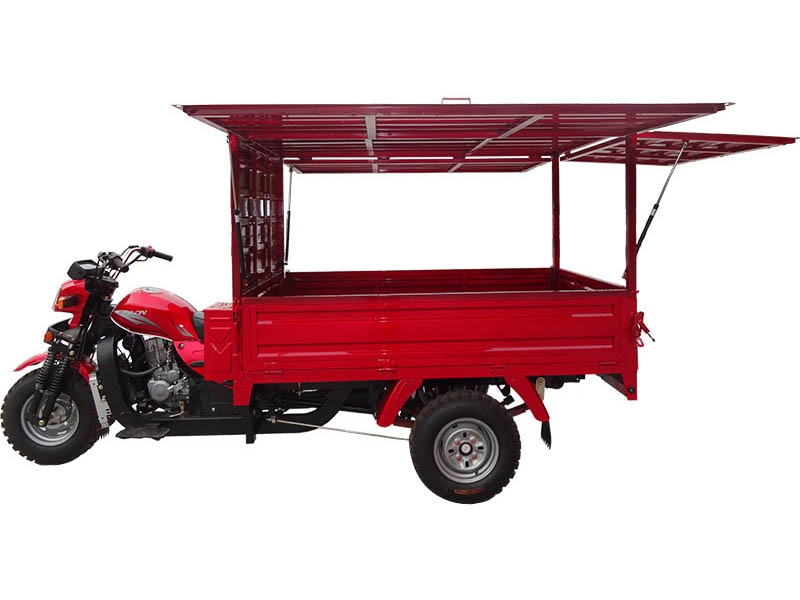

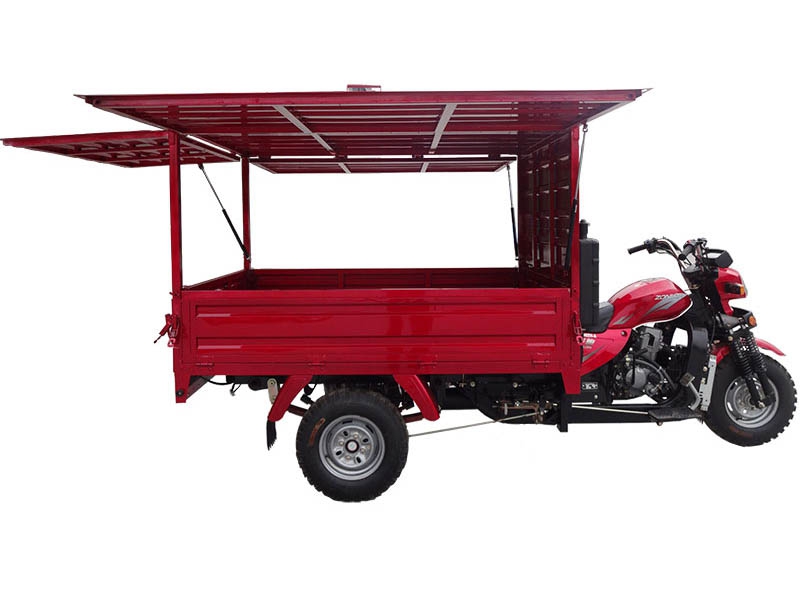

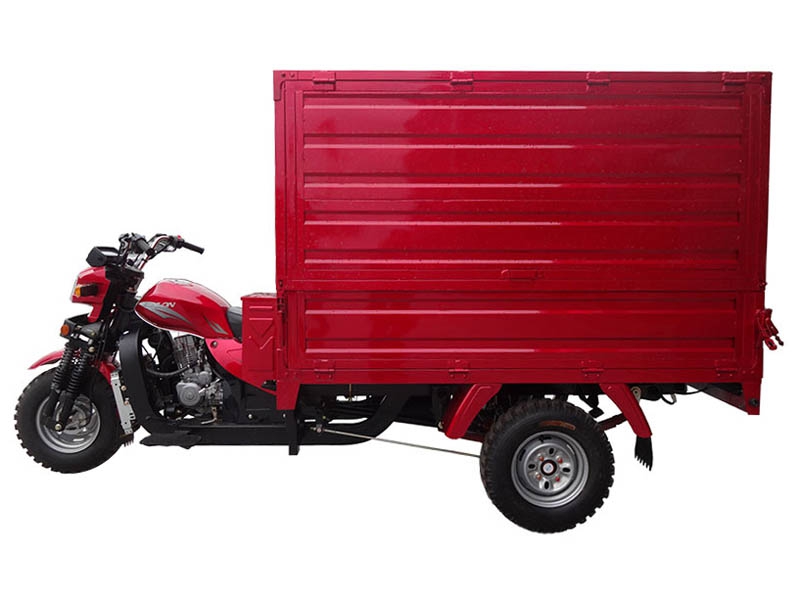

ZONLON Tricycle ZL200ZH-MS

ZL200ZH-MS 200cc Water-Cooled Mobile Shop 3 Wheelers motorcycle

Engine
Engine type	Single cylinder, water cooling, 4-stroke
Displacement	197ml
Compression ratio	10.2:1
Max power output	10.3 / 8000 kw/r/min
Max torque	14.2 / 6000 N·m/r/ min
Clutch	Wet multi-plate, pressure splash
Transmission & Reverse	5 forward gears + 1 reverse
Stgering mechanism	Steering handle bar
Chassis	FR / RR 50×100 rectangular steel tube
Front suspension	Type 800 W270 solo front shock absorber with interchangeable wheel
Rear suspension	Greased outer mounting 5+4 conbined leaf spring, Semi-float rear axle
Braking system	FR 130,RR 220, mechanical braking
Wheel tire	FR / RR 4.50-12
Battery	12V /28Ah
Starting method	Electric / Kick starter
Fuel tank	Gasoline, 12L
Fuel consumption	≤354
Ground clearance	160mm
Max speed	60km/h
Overall dimension
Wheel base	2200mm
Dimension	3550×1350×1560mm
Cargo box size	2000×1350×1200 mm
Vehicle weight	kerb 420kgs, pay load 350kgs
Container load	20 sets in CKD /20GP; 42 sets in CKD / 40HQ
Optioal parts	Semi-cabin
