ZONLON Special Vehicle ZL250ZH-GT

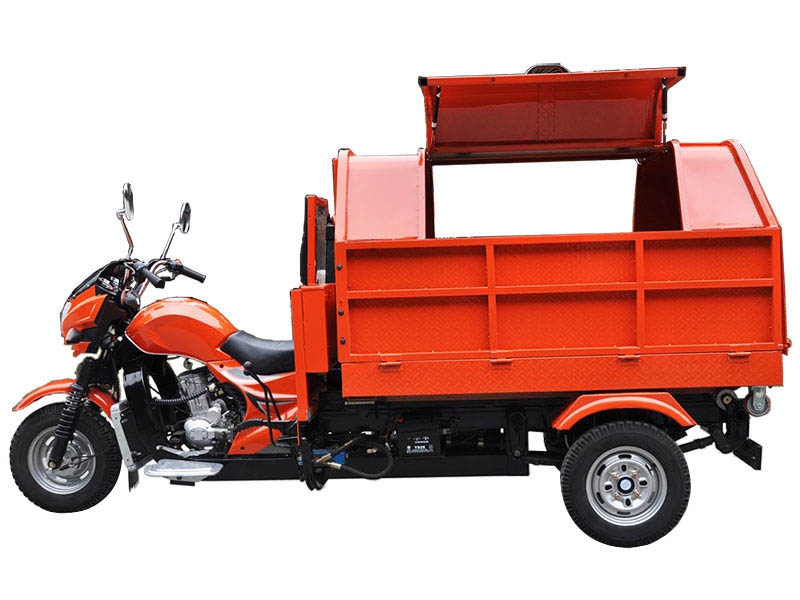

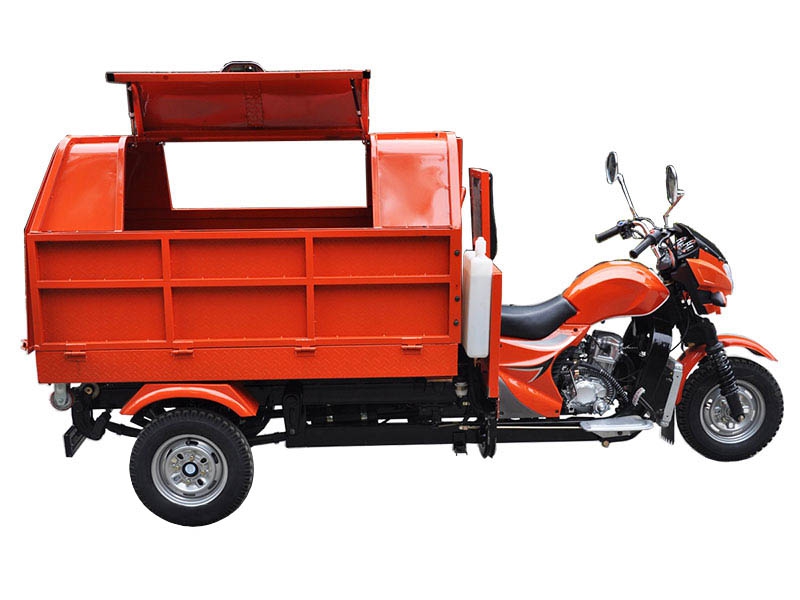

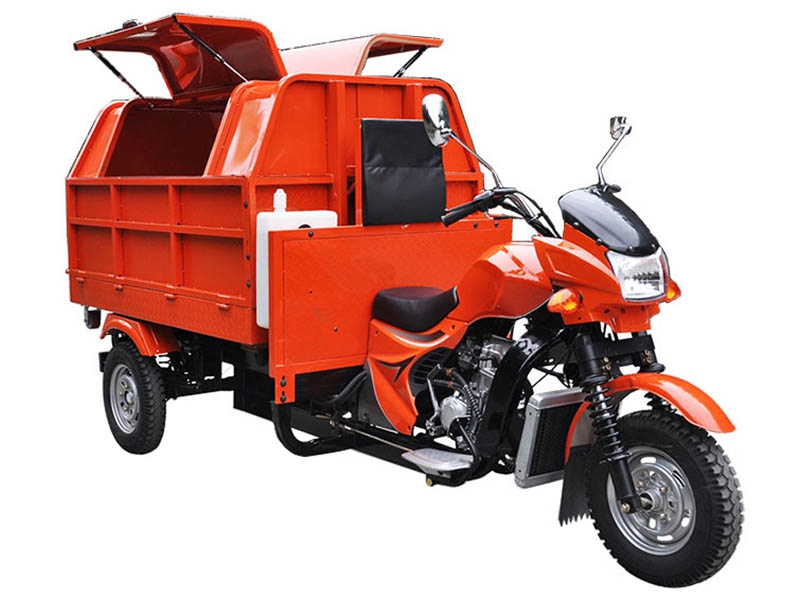

ZL250ZH-GT Garbage Tipper Motor Tricycle

Engine
Engine Type	Single cylinder, water cooling, 4 stroke
Displacement	229.5 ml
Compression ratio	10.5:1
Max power output	10.5 / 7000 kw/r/min
Max torque	16.5 / 5500 N·m/r/ min
Clutch	Wet, multi-plate, Pressure splash
Transmission & Reverse	5 forward gears + 1 reverse

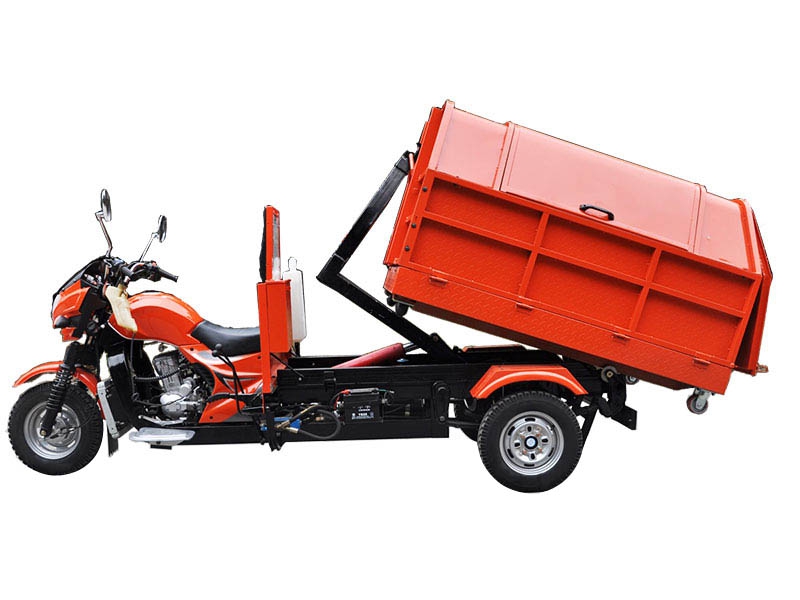

Tipper system	Single, 2-stage, hydraulic cylinder
Steering mechanism	Steering handle bar
Chassis	FR 50×100, RR 40×80 rectangular steel tube
Front suspension	Type 800 W270 Solo front shock absorber with interchangeable wheel
Rear suspension	Integrated pickup 7 pcs leaf spring , Chan'an rear axle
Braking system	FR 130, RR 220, mechanical braking
Wheel tire	FR / RR 5.00-12
Battery	12V / 28Ah
Starting method	Electric / kick starter
Fuel tank	Gasoline, 13L
Fuel consumption	≤354
Ground clearance	170mm
Max speed	60km/h
Overall dimension
Wheel base	2200mm
Dimension	3600×1350×1920mm
Cargo box size	1800×1350x1000mm
Vehicle weight	Kerb 530 kgs, Pay load 350 kgs
Container load	10 sets in CKD /20GP; 22 sets in CKD / 40HQ
